CNC Drilling Tapping Center | Built for High-Efficiency Drilling and Tapping

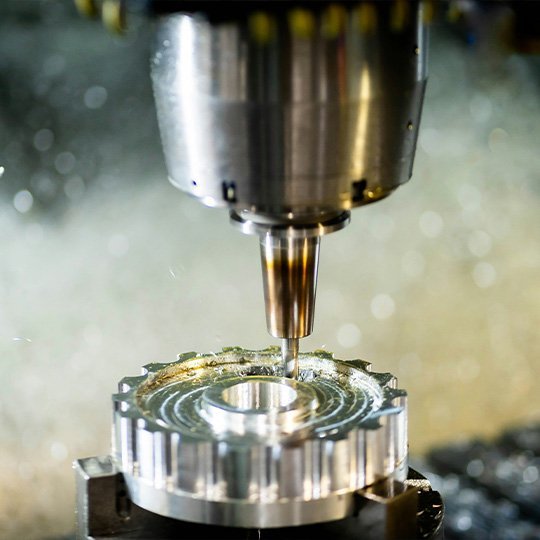

- It reduces burrs in composite stack drilling.

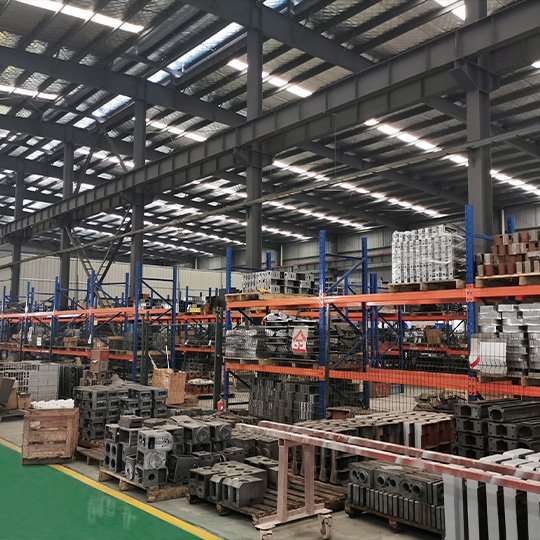

- Its stability is proven across 500+ customers.

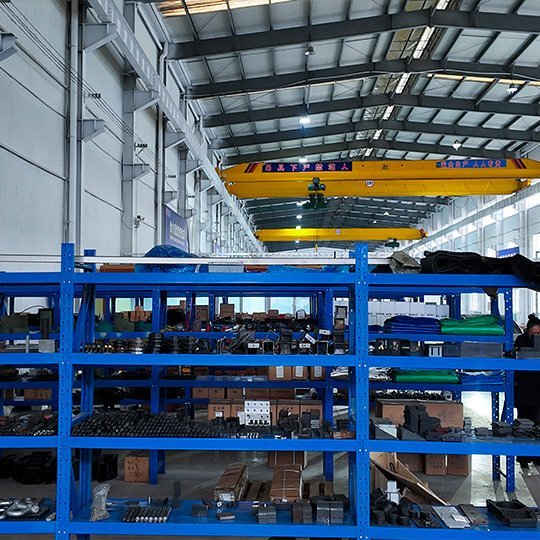

- It passes a 72-hour dynamic test before delivery.

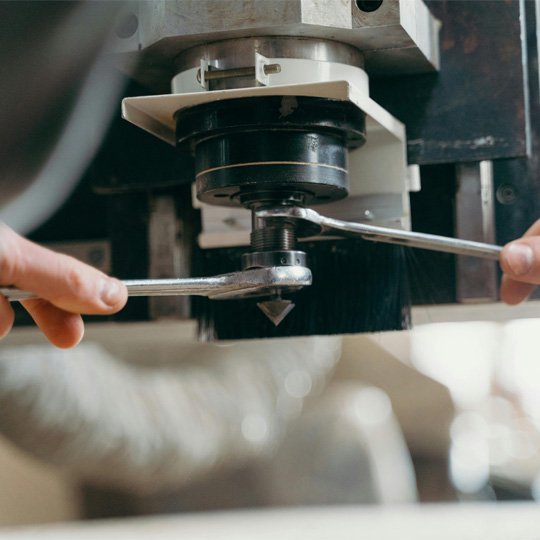

- Full traceability for your CNC drilling and tapping center.

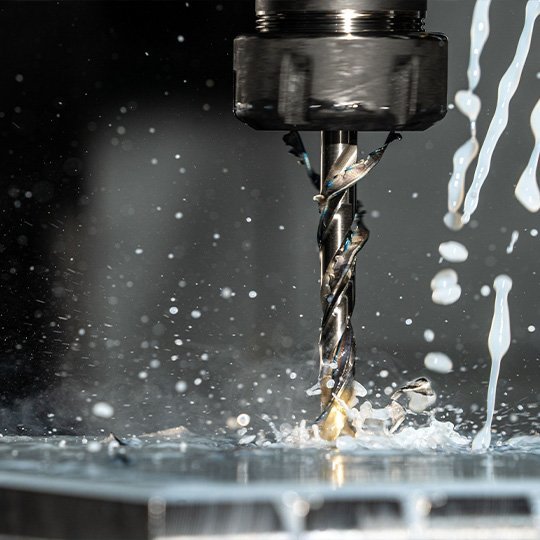

- The 20,000rpm spindle features T1DD thermal stability.
CNC Drilling Tapping Center Manufacturer
TOP MADE is your CNC drilling tapping center manufacturer, serving over 500 Chinese customers across more than 20 sub-industries. You benefit from our flexible production system, which adjusts from 100 to 500 sets per month to meet your demand. Your machine passes our three-step quality control, including a 72-hour dynamic test before delivery. With a multi-language CRM and an international sales team, we solve your core needs: lead time, product quality, and localized service.
CNC Drilling Tapping Center Lineup

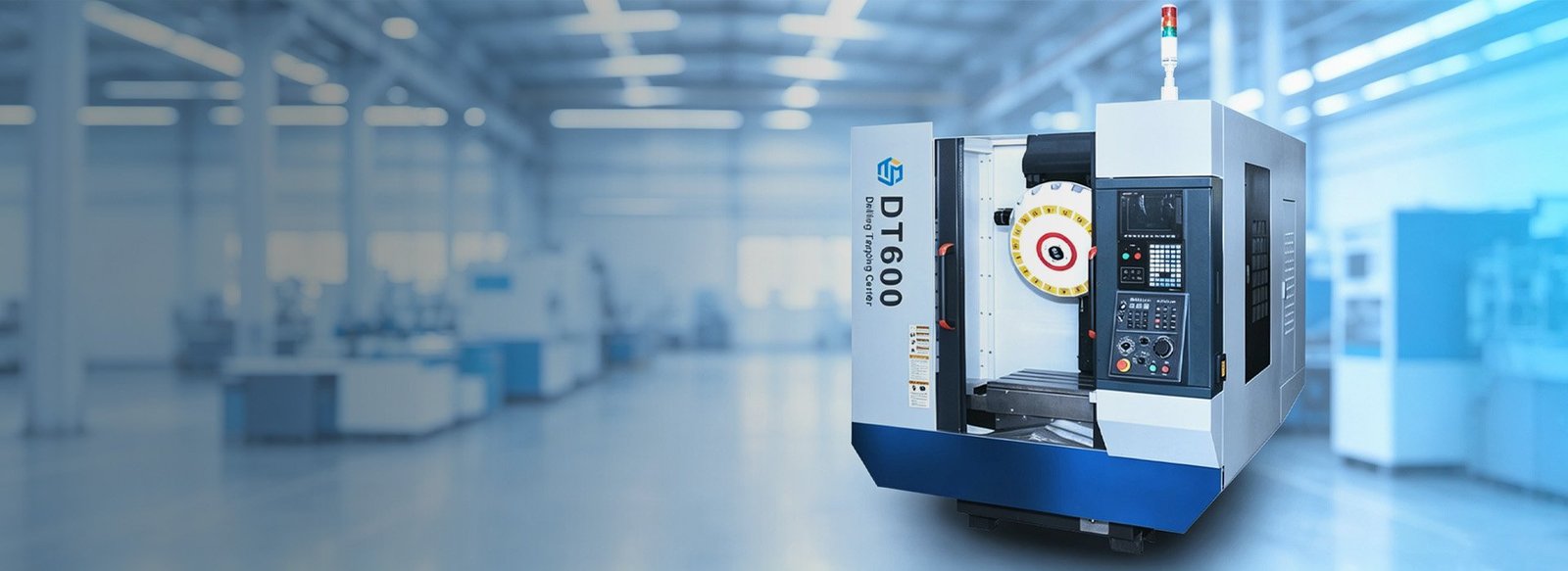

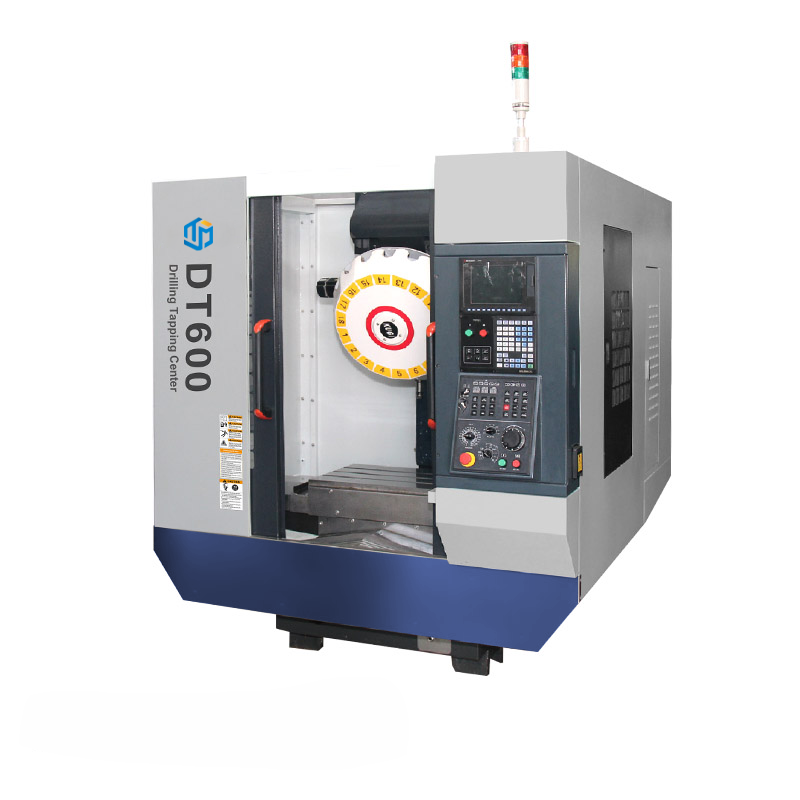

The DT600 CNC drilling tapping center features a 20,000rpm spindle, 48m/min rapids, 0.8s servo tool change, 1G acceleration, and ±0.005mm positioning accuracy.

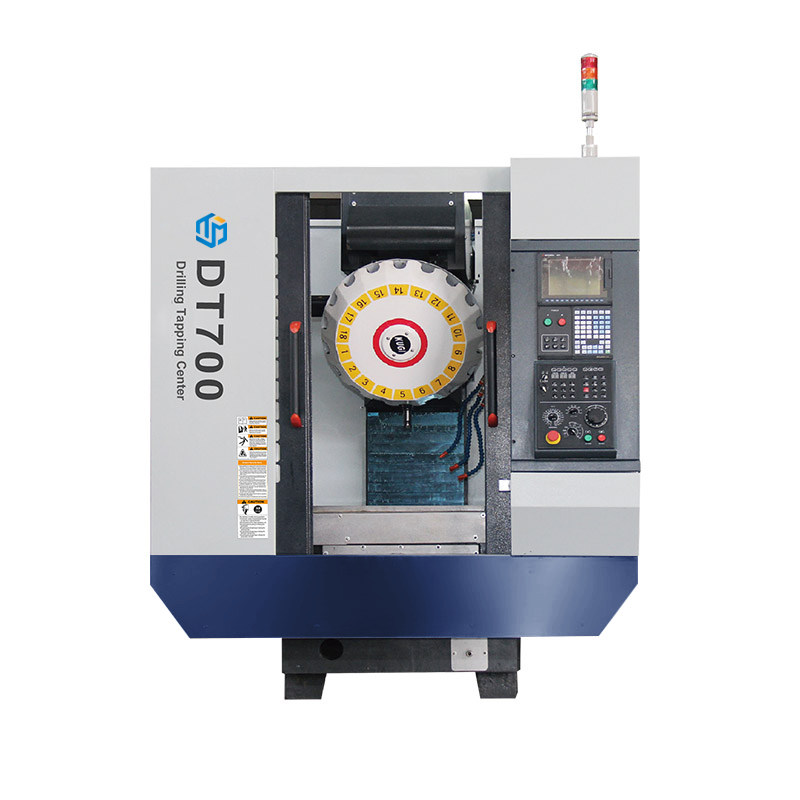

The DT700 CNC drilling tapping center offers 700mm X-axis travel, a 20,000rpm spindle, 48m/min rapids, 0.8s servo tool change, and 1G acceleration.
Why You Need High-Speed CNC Drilling Tapping Center?
1G acceleration takes you from 0 to 60 m/min in just 0.21 seconds, minimizing non-cutting wait time.
Servo-driven tool change in just 0.8 seconds, increasing your parts per hour.
20,000rpm direct-drive spindle with T1DD heat barrier for sustained accuracy.
Rear chip removal and slant base design for fast chip discharge, reducing your downtime.

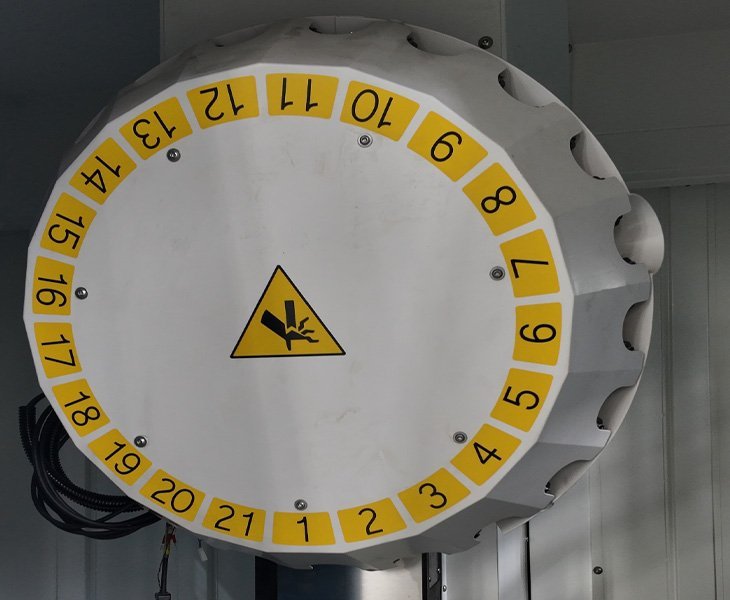

1G Acceleration + 0.8s Tool Change
With 48 m/min rapids on all three axes and 1G acceleration, your CNC drilling tapping center reaches 60 m/min in just 0.21 seconds. Combined with a 0.8-second servo-driven tool change, you significantly reduce non-cutting time. This means you get more parts per hour and higher production efficiency for your drilling and tapping operations. Whether you are running aluminum parts or small metal components, this high-speed CNC drilling and tapping center keeps your production line moving and maximizes your throughput.

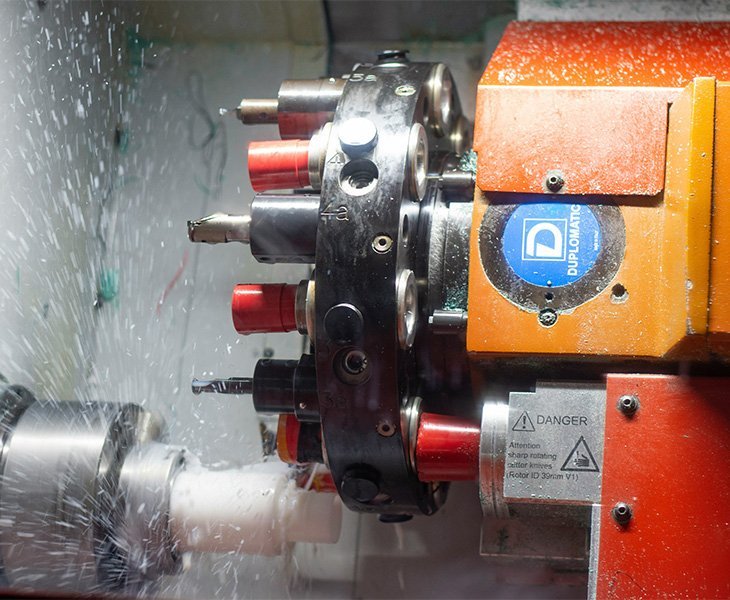

Rear Chip Removal + Rear-Slanting Base
The 200-liter coolant tank, combined with rear chip removal and a rear-slanting base design, allows chips to discharge quickly with minimal manual intervention. This helps you reduce downtime for cleaning and protects your spindle and ballscrews from chip-related damage. The system is ideal for your extended continuous operation with less operator attention. For your shop running high-volume drilling and tapping jobs, reliable chip evacuation means fewer stops and more productive hours for you.

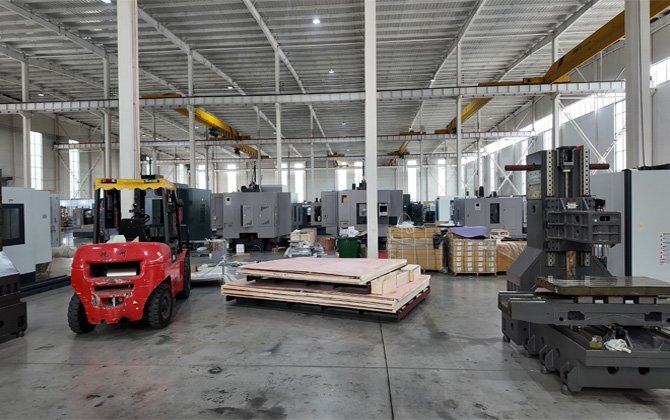

Company Capabilities
As your CNC drilling tapping center supplier, we serve over 500 Chinese manufacturing customers with 6 major product lines covering 90% of metal processing scenarios, where compound processing equipment accounts for 35%. With flexible monthly capacity from 100 to 500 sets, a three-step quality control system, and a 72-hour dynamic test, we provide you with reliable metal processing solutions.
Solutions by Industry
3C electronics demand extreme drilling accuracy and machining efficiency. Your CNC drilling tapping center, with 1G acceleration, 0.8s tool change, and 20,000rpm direct-drive spindle, enables you to achieve high-speed precision machining of metal components for smartphones, tablets, and more.
High-volume aluminum part processing requires stable machine performance and minimal non-cutting time. Your CNC drilling tapping center features 48m/min triple-axis rapids, rear chip removal, and a 72-hour pre-delivery dynamic test — giving you high efficiency and reliability during continuous operation.
Technical Specifications
- Cnc Drilling Tapping Center Specifications
| Specification | DT600 | DT700 |
| Worktable | ||
| Worktable Size(L×W) | 700×420mm | 800×420mm |
| T-slots size(N×W×D) | 3-14×125mm | 3-14×125mm |
| Travel | ||
| X/Y/Z axis travel | 600/400/350mm | 700/400/350mm |
| Machining range | ||
| Distance from spindle nose to worktable surface | 145-495mm | 145-495mm |
| Distance from the spindle center to the column | 445mm | 445mm |
| Spindle | ||
| Spindle taper | BT30-100 | BT30-100 |
| Spindle power | 3.7/5.5kw | 3.7/5.5kw |
| Max. spindle speed | 20000rpm | 20000rpm |
| Feed | ||
| Rapid feed speed(X/Y/Z) | 48/48/48m/min | 48/48/48m/min |
| Ball screw | ||
| X/Y/Z axis ball screw | ∅32/P16/C3 | ∅32/P16/C3 |
| Positioning accuracy | ||
| Positioning accuracy(X/Y/Z) | ±0.05/300mm | ±0.05/300mm |
| Re-positioning accuracy(X/Y/Z) | ±0.03/300mm | ±0.03/300mm |
| Machine dimension | ||
| L×W×H | 1550×2700×2500mm | 1550×2700×2500mm |
| Machine weight | ||
| Max. loading of worktable | 300kg | 300kg |
| Machine weight | 2400kg | 2500kg |
Customer Testimonials
We chose this CNC drilling tapping center after comparing three suppliers. The main factors were the tool change speed (0.8 seconds) and the pre-delivery test (72 hours). The machine was installed according to the manual and entered production on day five. It has been running steadily for four months.
Marco BianchiPurchasing Specialist, ItalyWe ran two weeks of side-by-side tests between this CNC drilling tapping center and a Japanese domestic brand. Positioning accuracy and 24-hour thermal displacement were both within spec. The start-stop response from 1G acceleration is very crisp. Honestly, at this spec level, the value for money is hard to beat.
Kenji TanakaTechnical Consultant, JapanTo be honest, I was skeptical about Chinese machines at first. But after using this CNC drilling tapping center for a month, I’ve changed my mind. The 0.8s tool change is just as fast as our old German machine, at half the price. We’ll order two more for our next expansion.
Carlos RodriguezWorkshop Supervisor, Spain
A CNC drilling tapping center focuses on drilling and tapping operations, with three-axis rapids up to 48 m/min, 0.8s tool change, and 1G acceleration — giving you faster cycle times for hole-making tasks. A machining center is better for milling but has slower rapids and tool change. If you process hole-dominant parts, a CNC drilling and tapping center is more efficient for your shop.
Yes. The BT30 spindle with 20,000rpm is suitable for small-diameter stainless steel drilling (recommended below 6mm). When you machine stainless steel, reduce the feed rate and spindle load to protect your tooling. If stainless steel is your primary material, you may consider the optional disc tool magazine and a more robust cooling system for your CNC drilling and tapping center.
A counterweight-free spindle head makes your Z-axis feeding more sensitive and precise. Counterweight systems create inertia and delay, affecting your drilling depth control. Without a counterweight and with 1G acceleration, your CNC drilling tapping center reaches 60 m/min in 0.21 seconds — ideal for your high-frequency Z-axis movement in drilling and tapping.
