TOP MADE has served over 500 Chinese manufacturing customers across 20+ sub-sectors, building a complete local supply chain verification system. Our compound processing equipment accounts for 35% of our product mix, well above the industry average of 18%. With domestic and overseas sales networks operating in parallel, and 40% of our international team being European and American market experts, we export local success to global markets.
Entry & Education Series – Learn CNC with Ease
Economical and space-saving, with a quiet and precise spindle, perfect for various soft metal processing tasks.
Driven by a servo main motor, it handles cast iron and steel with ease, while rigid tapping meets the demands of batch processing and mold manufacturing.
The 12000rpm high-speed electric spindle unlocks engraving potential, while also excelling in cast iron and steel processing for batch production, engraving, and mold making.
Comes with a full cover and Taiwan 8000rpm spindle, supporting rigid tapping and automatic lubrication.
Equipped with an electronic handwheel and coolant system, plus Ethernet and USB interface for data transfer.
Includes a tri-color alarm light and LED working lamp, with switchable manual and auto operation.
Comes with a full cover and Taiwan 8000rpm spindle, supporting rigid tapping and automatic lubrication.
BT30 spindle taper and 18000rpm max speed work with an umbrella-type ATC and After series CNC controller, supporting liquid cooling and pneumatic tool change.
Why Choose TOP MADE CNC Milling Machines?
One brand covers everything — from educational soft metals to industrial hard steel. Find the right machine for your shop, your material, and your budget.
Full cover enclosure isolates chips and coolant, ideal for unattended operation.
Connect a PC to operate, no complex training needed, quick start for students and beginners.
Rigid tapping eliminates broken taps and removes manual secondary tapping.
12000rpm high-speed electric spindle delivers a high surface finish without secondary polishing.
Vertical panel with clear layout reduces errors and ensures stability during long runs.
One-click switch between manual and auto modes, for prototyping and batch production.
Umbrella-type ATC for fast and accurate tool changes, unattended machining of complex parts.
Taiwan high-precision spindle with low noise and minimal runout, stable under daily heavy loads.

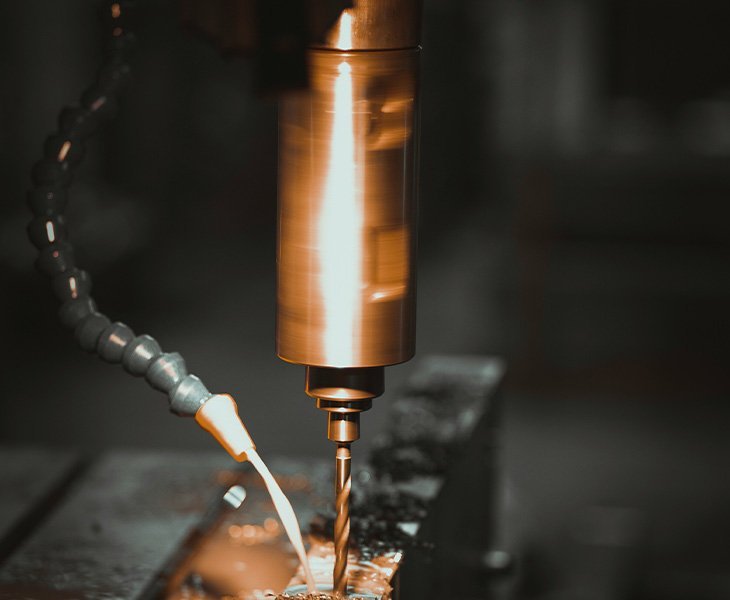

Rigid Tapping for Efficient Batch Processing
Unlike ordinary drilling machines that require manual tapping or secondary operations, TOP MADE’s rigid tapping function cuts precise threads at high speed automatically. This feature is ideal for batch production of threaded parts in industries like automotive, plumbing, and machinery. It reduces labor cost, eliminates human error, and doubles your production efficiency.
Low Spindle Noise Without Sacrificing Precision
Many low-cost milling machines are either noisy or imprecise. TOP MADE spindles are engineered to deliver both low noise operation and high precision cutting. This is especially important for school workshops, home garages, and noise-sensitive environments. You get a comfortable working atmosphere without compromising on part quality or surface finish.
Download Center
Download our complete CNC milling machine catalog with detailed specifications and models.
Download quality certificates, compliance documents, and industry approvals.
Watch real machine footage showing cutting performance, operation, and machining results.

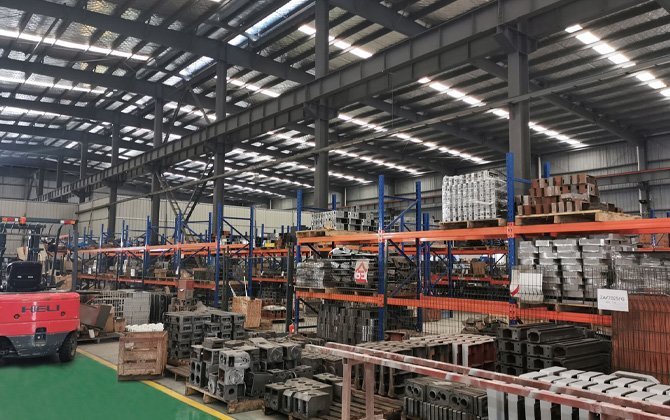

Company Capabilities
TOP MADE has accumulated a process knowledge database covering more than 20 sub-sectors and established a full-category machine tool product matrix, with compound processing equipment accounting for 35% – above the industry average. Domestic and overseas sales networks operate in parallel, with 40% of our international business department consisting of European and American market experts, exporting local successful experience to global markets.
Solutions by Industry
Schools and training centers need safe, easy-to-use, and affordable CNC milling machines. TOP MADE offers PC-operated models with low spindle noise and a compact footprint. Students learn fundamental metalworking skills without complex G-code programming. Multiple machines fit in one classroom. Perfect for vocational schools, universities, and maker spaces.
Producing molds, nameplates, artistic decorations, or detailed prototypes requires high-speed precision. TOP MADE 12000rpm electric spindle models deliver smooth surface finishes and fine detail resolution. Combined with rigid machine construction, you get repeatable accuracy for complex 3D contours. Perfect for sign makers, jewelry designers, and mold shops.
Machining hard metals requires rigidity, power, and safety. TOP MADE fully enclosed models like M2 Pro, M3 Pro, and selected XH models are built for cast iron and steel. Rigid tapping, heavy-duty spindle, and full cover protection come standard. Handle automotive parts, machine components, and tooling with confidence. No more sending hard metal jobs to expensive outside shops.
Technical Specifications
- XH Series Specifications
- XK7116 Specifications
- CNC-M45 Specifications
- XK Series Specifications

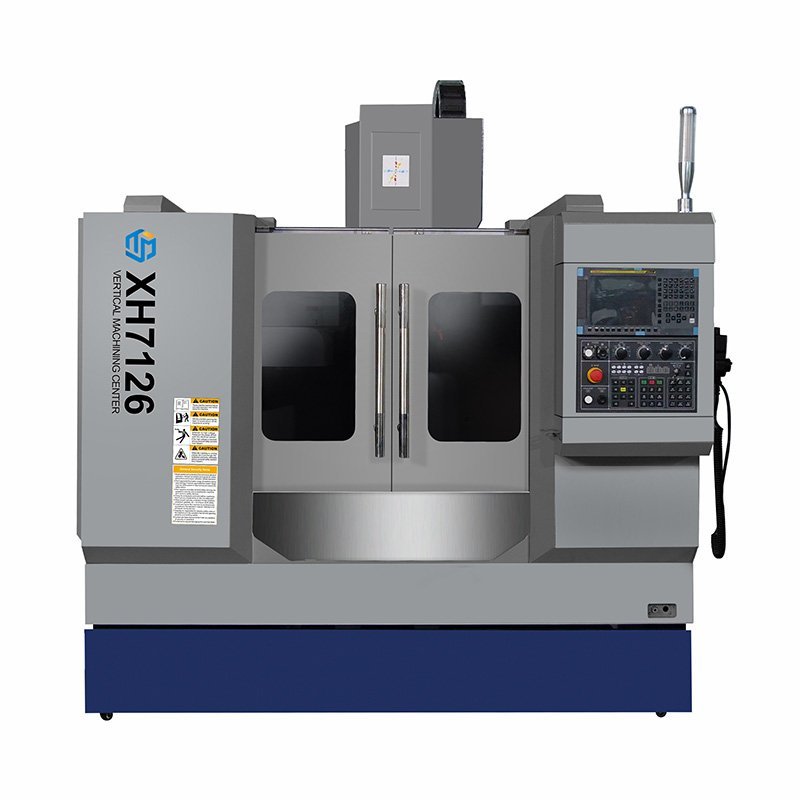

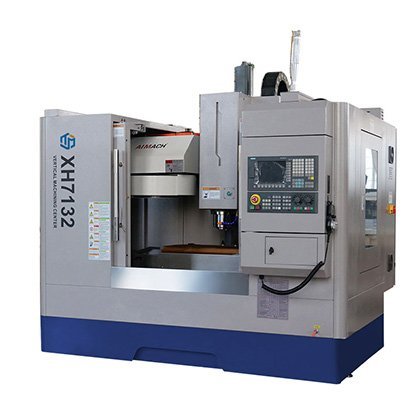

| Specification | XH7122 | XH7126 | XH7132 |
| Worktable | |||
| Worktable size(L×W) | 700×210mm | 800×260mm | 800×320mm |
| T-slot (N×W×D) | 5-18×100mm | 3-16×75mm | 3-16×100mm |
| Travel | |||
| X/Y/Z axis travel | 360/260/440mm | 500/320/450mm | 600/400/450mm |
| Machining range | |||
| Distance from the spindle center to the column | 270mm | 360mm | 400mm |
| Distance from spindle nose to worktable surface | 75-520mm | 90-540mm | 100-550mm |
| Spindle | |||
| Spindle taper | BT30 | BT40 | BT40 |
| Spindle power | 2.2kw/3.7kw | 3.7kw/5.5kw | 5.5kw/7.5kw |
| Max. spindle speed | 8000rpm | 8000rpm | 8000rpm |
| Feed | |||
| Max. feed speed | 18m/min | 10m/min | 10m/min |
| Rapid feed speed(X/Y/Z) | 10/10/10/min | 15/15/15m/min | 20/20/18m/min |
| Power | |||
| AC servo motor torque(X/Y/Z) | 6/6/6N.m | 6/6/15N.m | 7.7/7.7/15N.m |
| X/Y/Z feed motor power | 0.75/0.75/1kw | 1/1/2kw | 1.5/1.5/2kw |
| Rated power | 4.5kw | 8kw | 11kw |
| Ball screw(diameter+Head) | |||
| X/Y/Z axis ball screw | 2505 | 2510 | 3210 |
| Tool magazine | |||
| Tool magazine capacity | 8T/12T(optional) | 12T | 12T/16T(optional) |

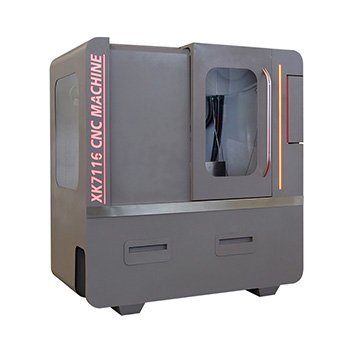

| Specification | XK7116 |
| worktable | |
| Worktable size(L×W) | 600×163mm |
| T-slot (N×W×D) | 3-12×50mm |
| Travel | |
| X axis travel(X/Y/Z) | 350/160/400mm |
| Machining range | |
| Spindle center to column distance | 161mm |
| Distance from spindle nose to worktable surface | 476.4mm |
| Spindle | |
| Spindle taper | BT30 |
| Main motor power | 3.7kw |
| Coolant system | liquid cooling |
| Change the tool way | Pnumetic |
| Rapid feed speed(X/Y/Z) | 8/8/8 m/min |
| Max. spindle speed | 18000rpm |
| Feed | |
| AC servo motor torque(X/Y/Z) | 2.4n.m/2.4n.m/4n.m |
| Ball screw (diameter+lead) | |
| XY Linear guideway | (Taiwan HIWIN)15mm |
| Z linear guideway | (Taiwan HIWIN)20mm |
| X-axis ball leadscrew | (Taiwan TBI)1605 |
| YZ axis ball leadscrew | (Taiwan TBI)2005 |
| Specification | CNC-M45 |
| Max. drilling capacity | 45mm |
| Max. milling diameter | 80mm |
| Max. tapping capacity | 20mm |
| Distance from spindle nose to table | 530mm |
| X-axis travel | 630mm |
| Y-axis travel | 265mm |
| Z-axis travel | 460mm |
| Table size | 1000×240mm |
| Distance from spindle to column | 291mm |
| Spindle sleeve travel | 130mm |
| Spindle taper | MT4/MT3/R8 |
| Spindle motor power | 1.5kw |
| Spindle motor voltage | AC 220V Single phase |
| Feed motor(X/Y/Z) | X/Y axis servo 750w+Z axis servo 1000w |
| Leadscrew(X/Y/Z) | 2005/2505/2505 |
| Spindle speed (two gears + stepless speed regulation) | 0-2600RPM |
| CNC system | AFTER 990MDCa |

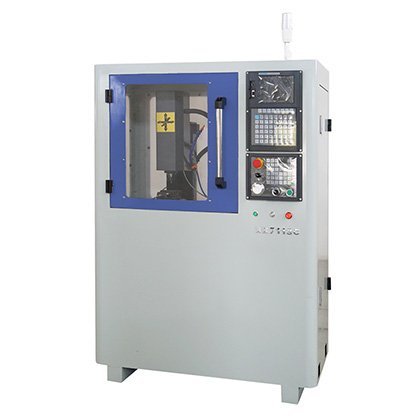

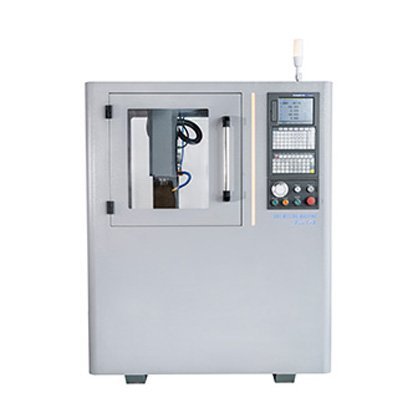

| Specification | XK7113A/B | XK7113C | XK7113D |
| worktable | |||
| Worktable size (L×W) | 400×140mm | 400×140mm | 400×140mm |
| T-slots size (N×W×D) | 3-12/40mm | 3-12/40mm | 3-12/40mm |
| Travel | |||
| X-axis travel | 210mm | 210mm | 210mm |
| Y-axis travel | 120mm | 120mm | 120mm |
| Z-axis travel | 200mm | 200mm | 200mm |
| Machining range | |||
| Max. drilling dia. | 13mm | 16mm | 13mm |
| Max. milling dia. | 13mm | 16mm | 13mm |
| Max. tapping dia. | N/A | M8 | N/A |
| Spindle | |||
| Distance from the spindle center to the column | 189mm | 194mm | 200mm |
| Distance from spindle nose to worktable surface | 205mm | 215mm | 215mm |
| Spindle speed | 3000rpm | 3000rpm | 12000rpm |
| Spindle taper | ER20 | ER25 | ER20 |
| Spindle power | 400w | 1.2kw | 2.2kw |
Customer Testimonials
This is the third XK7113C I have purchased for my factory. The servo motor handles cast iron daily without any trouble. Rigid tapping works perfectly on steel parts. A reliable machine for batch production.
Marco RossiFactory Owner, ItalyWe needed a simple CNC for drilling and light milling on steel brackets. The CNC-M45 does exactly what we need. Easy to program and very affordable for a small shop like ours.
Andrei PopescuSmall Workshop Owner, RomaniaRunning 200 identical aluminum brackets every week. The M3’s high-speed spindle maintains consistent quality from the first part to the last. Set it up, press start, and walk away. Very reliable for repetitive work.
Kamil KowalskiProduction Technician, Poland
A CNC milling machine uses computer-controlled rotating cutting tools to remove material from a workpiece. Unlike manual mills, where you turn handles, CNC machines follow programmed instructions to move the tool in three axes (X, Y, Z). This allows precise, repeatable parts without constant operator adjustment. TOP MADE CNC mills bridge the gap between manual machines and industrial automation.
A 3-axis CNC mill (X, Y, Z axes) can machine flat parts, pockets, slots, holes, contours, and 2.5D shapes such as stepped surfaces. Common products include nameplates, brackets, enclosures, gears, molds, educational projects, and custom car parts. For complex 3D sculptures or undercuts, you would need 4 or 5 axes. TOP MADE offers optional 4th-axis rotary tables for advanced work.
Regular maintenance includes cleaning chips after each use, checking the lubrication oil level, and inspecting the spindle belts or bearings. TOP MADE models feature automatic lubrication systems on select models, reducing manual maintenance. A full inspection every 500 operating hours is recommended. Detailed maintenance schedules are provided in the user manual.
