Why You Need Our High-efficiency HMCs for Heavy-duty Precision Machining

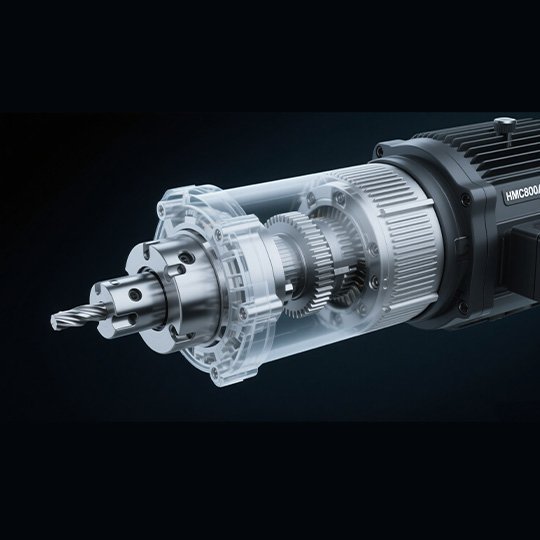

- All mechanical components are designed using Finite Element Analysis (HMC1000A) to ensure optimal structural rigidity, vibration resistance, and thermal stability.

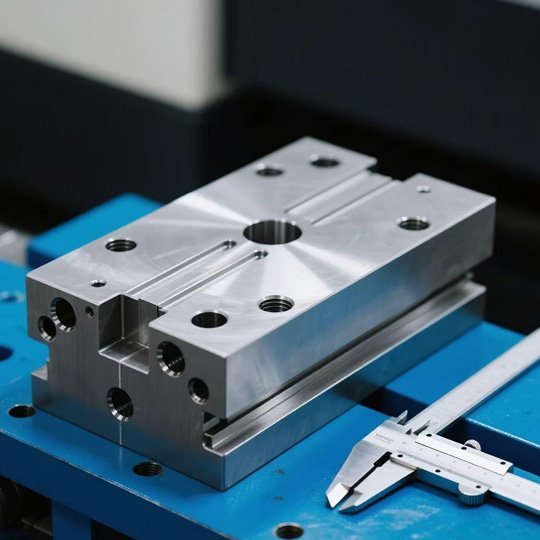

- Accumulated industry knowledge database: giving you proven process parameters and solutions for part machining across diverse industries.

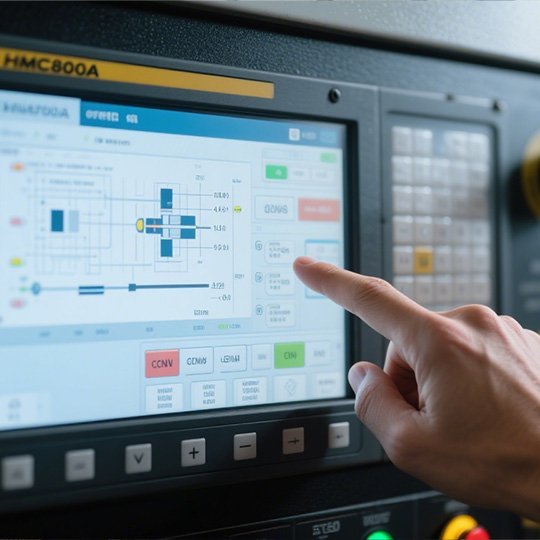

- You also get maintenance, and repair, plus extensive training to help you maximize machine potential and ROI.

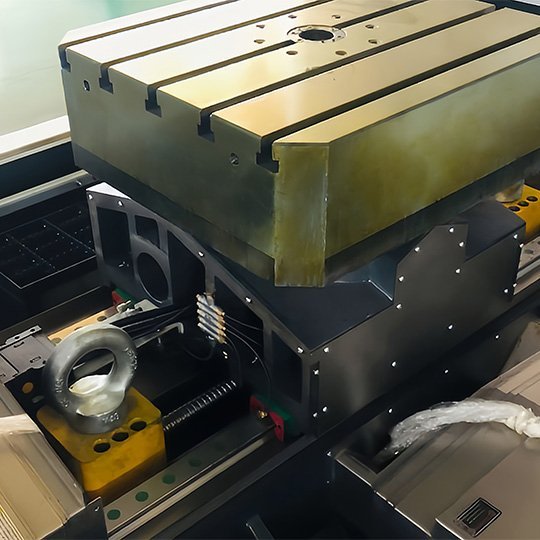

- You also benefit from one-year free warranty and lifetime maintenance – lowering your long-term ownership risks.

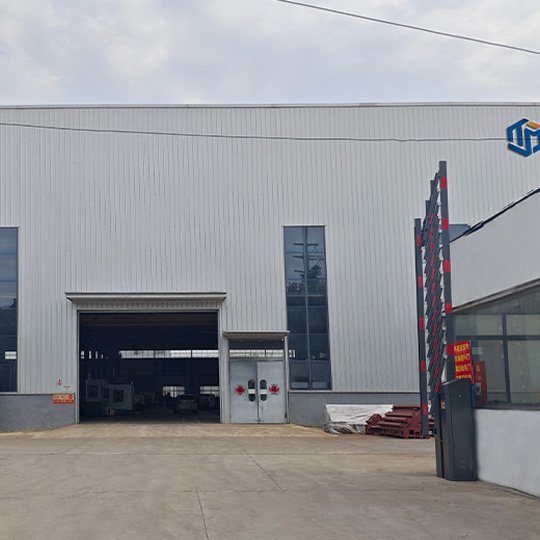

- Full acceptance and performance tests are conducted before delivery to guarantee precision, rigidity, and reliability.
Your Most Reliable Long-Term Partner for Horizontal Machining Centers
Our business model is simple: We help you tackle heavy-cutting and mass-production challenges with high-rigidity, high-precision Horizontal Machining Centers (available in Inverted-T and straight-T structures with ±0.001mm accuracy), backed by a localized service network that gives you peace of mind.With a decade of experience serving over 500 clients across China, we leverage local supply chain verification and an industry knowledge database to support you. From lifetime maintenance to a 10-minute spare parts response time-we handle the rest, so you can focus on production.
Horizontal Machining Center Lineup

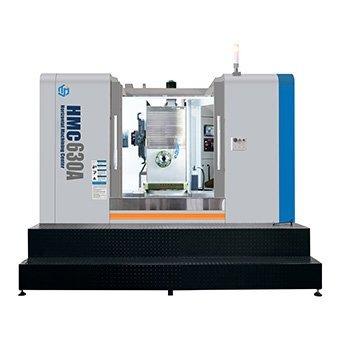

The HMC630A features an inverted-T structure and hardened rectangular guideways to achieve ±0.001 mm accuracy and 30 m/min rapids.

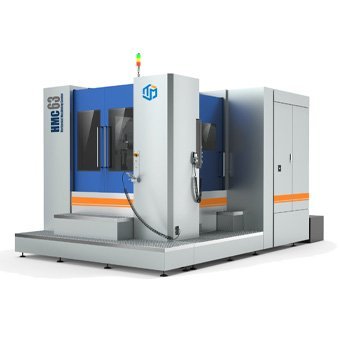

The HMC63 adopts a straight-T bed made of HT300 cast iron and hardened rectangular guideways for vibration-free precision at 30 m/min rapids.

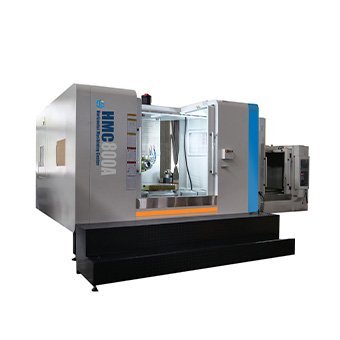

The HMC800A uses a monoblock base with a large-span double-wall column and a single 800 mm pallet for stable heavy-duty cutting.
The HMC1000A applies an inverted-T bed, roller linear guides, and C3 double-nut ground ball screws for high rigidity and 24 m/min rapids.
How One HMC Series Covers Your Engine Blocks, Valves, and Aerospace Parts
From inverted-T to straight-T structures, our HMC series delivers ±0.001 mm accuracy, 30 m/min rapids, and ≤2.5 sec tool changes. We built them for your heavy cutting of cast iron and alloy steel.
Machine cast iron engine blocks with ±0.001 mm accuracy and high metal removal rates.
Achieve Ra ≤1.6 μm surface finish for leak-proof sealing surfaces.
Handle large 1000 kg workpieces using inverted-T structures.
Hold tight tolerances on titanium and alloy steel with inverted-T or straight-T rigidity.

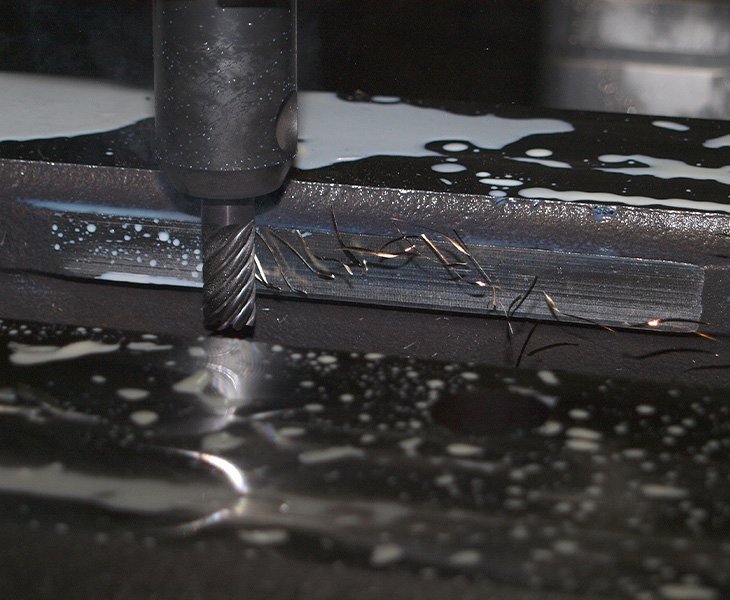

Why Is Your Machining Accuracy Drifting? The Culprit Might Be the Chips.
Chips left inside the machine absorb heat and cause thermal deformation of the bed. Your first part is perfect, but the 100th part drifts out of tolerance. Chips are removed automatically and continuously – so you reduce heat buildup, maintain thermal stability, and keep accuracy consistent from first part to last.
Why Do Machine Stoppages Delay Your Deliveries?
Every hour your horizontal machining center sits idle, you lose money and customer trust. We built a complete local service system: sufficient spare parts with fastest 10-minute response, 24/7 on-site support for VIP customers, one-year free warranty, and lifetime maintenance. Plus full operator training. Serving over 500 Chinese manufacturers in ten years – ensuring your horizontal machining center runs at high utilization.

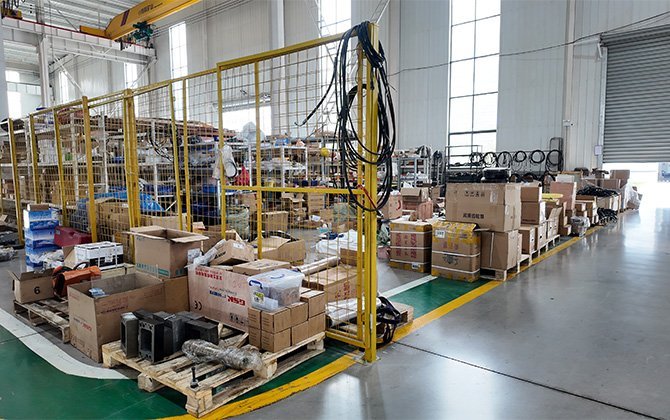

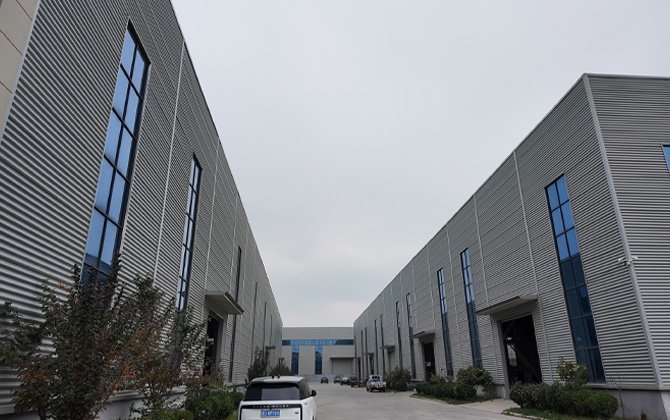

Company Capabilities
You don’t just buy a machine. You get a partner who has spent ten years learning what works for 500+ Chinese manufacturers. We’ve built an industry knowledge database across 20 sectors – so you don’t have to solve every problem from scratch. Full pre-delivery testing means no surprises. And when you need us, we’re there. That’s the advantage.
Customer Success Stories
Precision and reliability are non-negotiable for this aerospace supplier. Using our HMC1000A with C3 double-nut ground ball screws and roller linear guides, they hold tight tolerances on titanium components. When a rare issue occurred, our team responded within 10 minutes to dispatch spare parts. VIP 24/7 on-site support and lifetime maintenance keep their line running. You can expect the same level of dedication.
A German supplier of transmission components struggled with chatter during alloy steel roughing. They switched to our HMC63 with HT300 cast iron straight-T bed. The rigidity eliminated vibration, holding ±0.01 mm across batches. When a spindle issue occurred, our team responded within 10 minutes and dispatched a replacement. One year later, rework is down 60%. That’s the kind of result you can achieve.
Technical Specifications
- Specifications at a Glance
| Specification | HMC630A(Inverted T) | HMC63(Positive T) | HMC800A | HMC1000A |
| Worktable | ||||
| Worktable size (W×L) | 630×700mm | 630×700mm | 800×800mm | 1000×1000mm |
| Workpiece clamping type | 24×M16 | 24×M16 | 24×M16 | 24×M16 |
| Rotary diameter of workpiece | 1380mm | 1400mm | 1750mm | 1750mm |
| Travel | ||||
| X/Y/Z axis | 1050/750/900 | 1050/750/900 | 1600/1000/1000mm | 1600/1000/1000mm |
| Distance from spindle center to worktable surface | 120-870mm | 120-870mm | 160-1160mm | 120-1120mm |
| Distance from worktable center to spindle nose | 130-1030mm | 130-1030mm | 200-1200mm | 200-1200mm |
| Spindle | ||||
| Spindle hole taper | BT50 | BT50 | BT50 | BT50 |
| Spindle speed range | 5300rpm | 5300rpm | 6000rpm | 6000rpm |
| Drive type (Spindle) | Belt type | Belt type | Belt type | Belt type |
| Spindle power | 15/18.5kw | 15/18.5kw | 15/18.5kw | 15/18.5kw |
| Feed | ||||
| X/Y/Z axis rapid feed speed | 24/24/24m/min | 32/32/32m/min | 24/24/24m/min | 24/24/24m/min |
| B axis rapid feed speed | 10m/min | 10m/min | 10m/min | 10m/min |
| Tool magazine | ||||
| Tool magazine model | Manipulator | Manipulator | Manipulator | Manipulator |
| Capacity | 24T | 24T | 24T | 24T |
| Max. tools weight | 15kg | 18kg | 15kg | 15kg |
| Max. tools length | 350mm | 550mm | 300mm | 300mm |
| Tool change time | 5.5s | 5.5s | 5.5s | 5.5s |
| Accuracy(National standard) | ||||
| Positioning accuracy (X/Y/Z) | ±0.010mm | ±0.010mm | ±0.012mm | ±0.012mm |
| Re-positioning accuracy(X/Y/Z) | ±0.006mm | ±0.006mm | ±0.008mm | ±0.008mm |
| B axis division accuracy | 10’’ | 10’’ | 12’’ | 12’’ |
| B axis re-division accuracy | 5’’ | 5’’ | 6’’ | 6’’ |
| Machine Size | ||||
| L×W×H | 4800x3200x2950mm | 5000×3720×3000mm | 5600x4075x3180mm | 5600x4075x3180mm |
| Machine weight | ||||
| Max. loading of worktable | 1200kg | 1200kg | 1200kg | 1500kg |
| Machine weight | 12000kg | 12000kg | 17000kg | 18000kg |
Customer Testimonials
We were struggling with vibration on cast iron parts. The HMC630A actually fixed it. Tolerances are consistent now, and surface finish is good enough that we skip a secondary step. Fast rapids and tool change help a lot on batch work.
Klaus WeberWorkshop Manager, GermanyWe do a lot of cast iron roughing. Vibration was killing our tool life and scrap rate. Your horizontal machining center changed that. Rigidity is excellent -we finally hold tolerances without fighting chatter.
Jean-Pierre MartinWorkshop Manager, FranceFirst machine we bought from you was a risk. Now we have four. The consistency across batches is what keeps us coming back – same tolerance, same finish, shift after shift. No surprises.
Tommaso BianchiFactory Manager, Italy
The HMC has a horizontal spindle, suitable for complex and multi-faceted parts, with good rigidity and smooth chip removal. The VMC has a vertical spindle, commonly used for simple flat workpieces. If you machine complex, high-precision industrial parts, an HMC is the better choice for you.
Inverted-T (HMC630A, HMC1000A) features a wide, low base with a reinforced column for even weight distribution and vibration damping. Straight-T (HMC63) uses a horizontal bed with an integrated vertical column, also made of HT300 cast iron. Both give you high rigidity for heavy cutting – your choice depends on your workpiece size and need for thermal stability.
Yes. We provide you with comprehensive hands-on training for machine operation and maintenance. Additionally, we have built an industry knowledge database covering over 20 manufacturing sectors (automotive, aerospace, energy, etc.). You get proven process parameters and case studies, helping you reach full productivity faster without trial and error.
You benefit from our one-year free warranty and lifetime maintenance. VIP customers receive 24/7 on-site service. We maintain sufficient spare parts inventory with fastest response time of 10 minutes for emergencies. Full operator and maintenance training is included. We have served over 500 Chinese manufacturers in ten years, backed by a local supply chain verification system.
