CNC Vertical Lathe - Configured for Your Process Requirements
You can choose the CNC system that fits your shop: Siemens, Fanuc OiTF, GSK, or Huazhong. Our semi-closed loop full CNC control gives you good rigidity, high efficiency, and reliable operation. The vertical spindle arrangement makes clamping easier and reduces bearing load – so you maintain long-term accuracy. You also benefit from one-year free warranty and lifetime maintenance – lowering your long-term ownership risks.We focus on what matters: stable cutting, easy operation, and a machine that works for you every day.
Solid Performance, Fair Price - A Vertical Lathe You Can Trust
You get a machine built for real-world jobs. The bed is rigid, the spindle is vertical, and the control is full CNC. You can machine inner/outer cylinders, tapers, flat surfaces, grooves, threads, and curved surfaces – all in one setup. With encoder feedback, you also get constant surface speed and precise threading. No unnecessary features, no inflated price. Just a durable CNC vertical lathe that pays back fast.

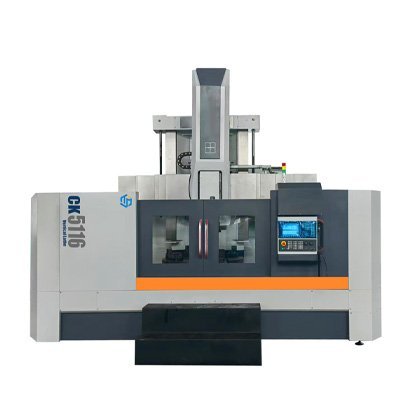

CNC Vertical Lathe Lineup
The spindle of the CNC vertical lathe is arranged vertically, making it easier to mount the workpiece and ensuring long-term precision.
Where Can You Use This CNC Vertical Lathe?
Machine sealing surfaces and bolt holes in one clamping.
Turn OD, ID, and both end faces without repositioning.
Achieve good roundness and flatness.
Turn long, large-diameter rollers with a steady rest.

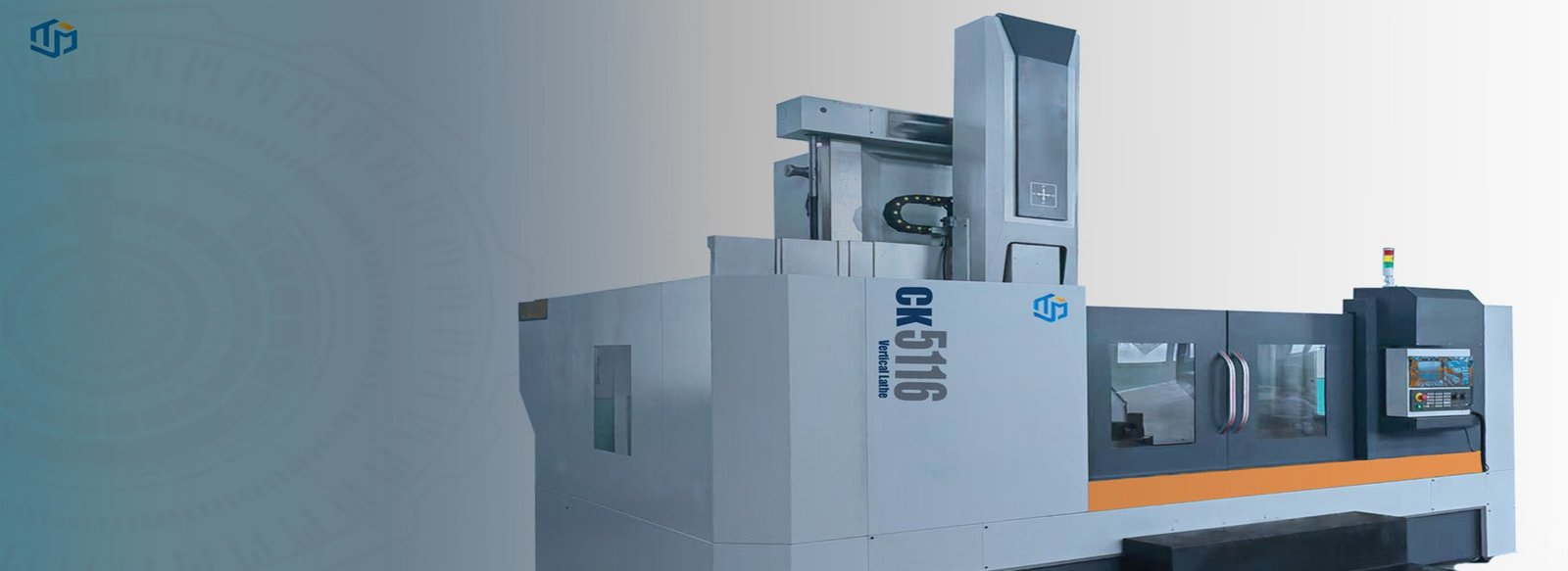

No More Worry About Heavy-Cutting Stability
Some machines vibrate under deep cuts. That hurts your productivity and part quality. Our bed and column are cast iron for rigidity. The vertical spindle directs cutting forces into the base, not into bearings. So you can take aggressive cuts without chatter. We design for real heavy stock removal – not just light finishing passes. That’s how you get stable, reliable output every day.

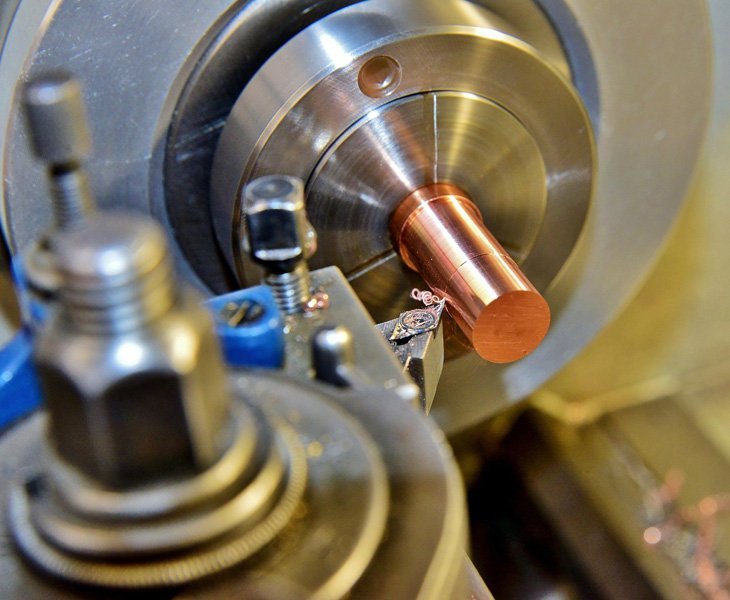

Easier Clamping, Longer Precision Life
You know the struggle: large, heavy workpieces are hard to lift and clamp on horizontal lathes. Our vertical spindle puts the table horizontal – you simply drop the part on. One person can do it. And because the workpiece weight rests on the table bearings, not the spindle, your machine experiences less bearing wear. You can keep accuracy for years, not months, with proper maintenance. A vertical lathe that works your way – that’s our promise.

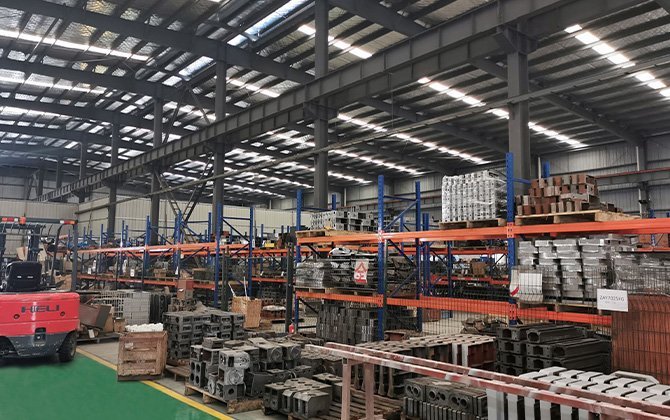

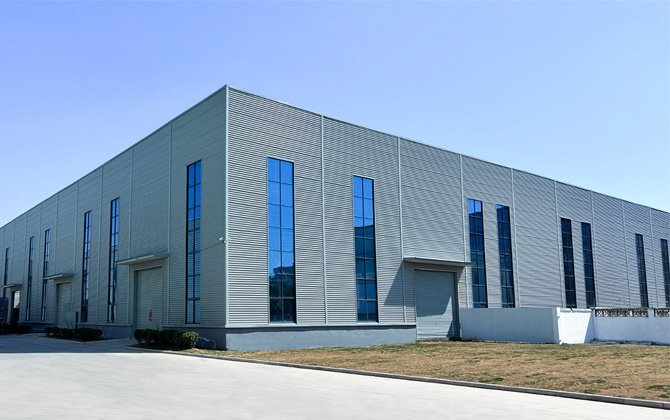

Company Capabilities
A rigid cast iron bed. A vertical spindle that reduces bearing load. A choice of CNC systems – Siemens, Fanuc, GSK, or Huazhong. No unnecessary extras, no inflated price. That’s our formula: give you exactly what you need for stable heavy cutting and long-term accuracy, without forcing you to pay for features you don’t use. Fair price, solid machine, direct support.
Solutions by Industry
You have different flange sizes and bolt hole patterns. Standard lathes need custom fixtures for each batch – expensive and slow. With our CNC vertical lathe and optional C-axis, you complete turning, facing, and drilling in one clamping. Setup time drops significantly.
You struggle with slow loading and vibration. Each drum takes 20 minutes to crane onto a horizontal lathe. Heavy cuts cause chatter. After switching to our vertical lathe with a large table, you load in 5 minutes. The vertical design allows deeper cuts without vibration. Your output increases, and the machine runs for years with no accuracy loss.
Technical Specifications
- Technical Specifications
| Specification | Unit | CK5116 |
| Model | ||
| Max dia | mm | 1600 |
| Table dia | mm | 1400 |
| Max workpiece height | mm | 1000/1200 |
| Max workpiece weight | t | 5 |
| Max torque of table | KN.m | 30 |
| Table rotate speed range (4gear stepless) | r/min | 1-160 |
| Max cutting force of the vertical holder | KN | 22 |
| Tool rest feed range | mm/min | 0.1-500 |
| Tool rest feed level（ungraded） | 级 | 无级 |
| Horizontal travel of rail head | mm | 915 |
| Ram travel of rail head | mm | 800 |
| Crossbeam travel | mm | 850 |
| Fast moving speed of tool heads | mm/min | 2500 |
| Beam lift speed | mm/min | 440 |
| Knife rod cross-section size (W.D.) | mm | 30×40 |
| Main motor power | KW | 30 |
| Overall size of machine | mm | 4000×4350 |
| ×3060 | ||
| Weight of machine | t | 12.5 |
Customer Testimonials
We use this CNC vertical lathe for repairing mining rollers and gear blanks. It’s straightforward to operate. The vertical design makes clamping large parts less tiring. Support has been responsive when we had questions.
David NgcoboMaintenance Manager, South AfricaRepairing gear blanks and rollers is much simpler now. The controls are intuitive, and geometry stayed within spec after one full year. Easy to get spare parts too. A solid machine for the money.
Rajesh PatilMaintenance Engineer, IndiaWe have had this CNC vertical lathe for about two years. We machine mostly wheel hubs and flywheels. It runs reliably. Clamping is faster than our older lathe. For the price, it’s a solid machine.
Mustafa YılmazWorkshop Foreman, Turkey
Precision loss comes from wear, heat, and lubrication issues. But if you choose a well-designed vertical lathe (like ours, with vertical spindle reducing bearing load) and perform regular maintenance, you can maintain stable accuracy for many years. Some users report consistent geometry even after a decade of daily use.
Hard rails offer high rigidity and vibration damping – ideal for heavy cutting. Linear guides provide higher speed for lighter, frequent tool changes. Our machine is designed for rigidity and stability, so you get reliable performance even under heavy stock removal. If you need specific rail type, please consult us.
You can minimize chatter by: reducing tool overhang, using a rigid tool holder, and clamping the workpiece securely. Choosing a machine with good overall rigidity (like our cast iron bed and vertical spindle) also helps. Optimizing cutting parameters balances efficiency and stability.
