Why Partner With Us?

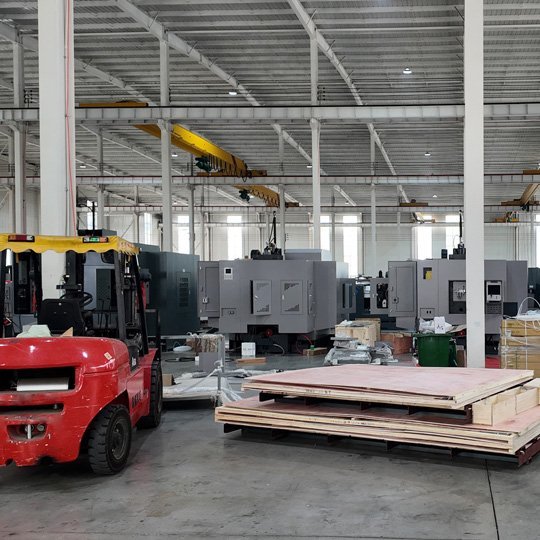

- Decades of Manufacturing Expertise – You benefit from our years of building milling machines. Every casting, guideway, and spindle reflects proven industrial know-how.

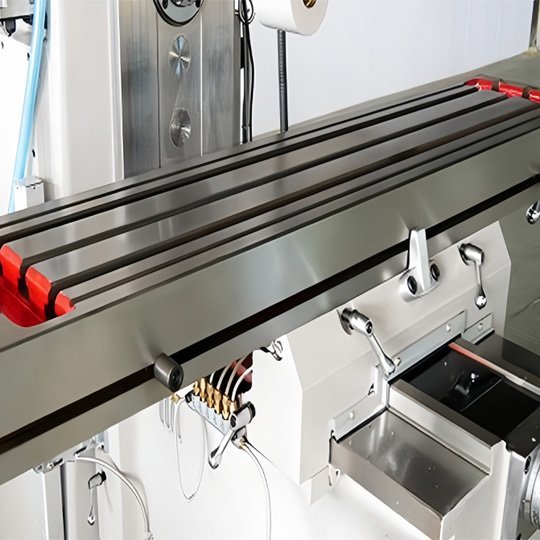

- In-House Production & Strict Process Control – From casting to final assembly, you get consistent quality and on-time delivery because we control every step in our own factory.
- Proven Track Record with Repeat Customers – Many workshops come back for their second, third, and fourth machine. You can trust our reliability.

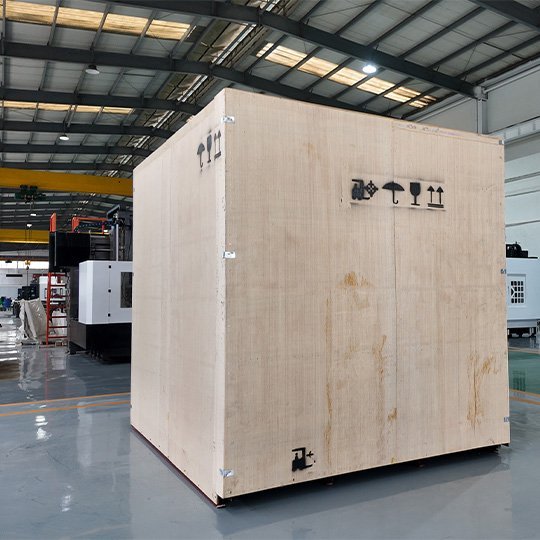

- Global Shipping & Hassle-Free Logistics – We handle robust export packaging, customs clearance support, and safe delivery to your door, anywhere in the world.
- Experienced Technical Support Team – Our engineers answer your tough questions, help with installation planning, and troubleshoot remotely – no call centers.
Your Production Flow, Our Business Model
Our business model is simple: align with your shop floor reality. You get custom configurations (DRO systems) balanced with efficient batch production – so lead times stay short. You benefit from in-process quality checks, not just final inspection. We offer you flexible payment, transparent lead times, and long-term pricing. No empty promises – just a reliable milling machine supply chain that respects your deadlines and budget.
Milling Machines Lineup
Ram-type mill for heavy jobs. 7.5 kW ISO50 spindle, 2000×500 mm table takes 1800 kg. ±0.01 mm accuracy with three-axis ball screws.
Ram-type mill. Cast iron frame kills vibration for you. Servo feeds, DRO, and efficient cooling mean less downtime, lower cost.
Manual vertical and horizontal mill at a good price. Servo-driven feeds and rapid traverse. Hardened rails hold accuracy for your shop for years.
Runs steel, aluminum, even plastics. Stable cast iron bed, 60-1800 rpm. Simple controls, compact size, built to last.
Industrial turret mill with Taiwanese-style head. Rectangular guides. X-axis auto-feed with reverse. Switch from vertical to horizontal in minutes.
Why You Need a Heavy-Duty Milling Machine?
You need milling machines that combine rigid cast iron construction, precision ball screws, and servo drives to hold ±0.01 mm accuracy. You get factory inspection on every unit. We provide you with training, one-year warranty, VIP customers on site 24-hour service, and lifetime maintenance.
7.5 kW motor, 27 speeds from 50 to 1600 rpm
2000×500 mm table, handles up to 1800 kg load
Independent motors on X, Y, Z with ball screws
Precision ground and scraped for long-term accuracy

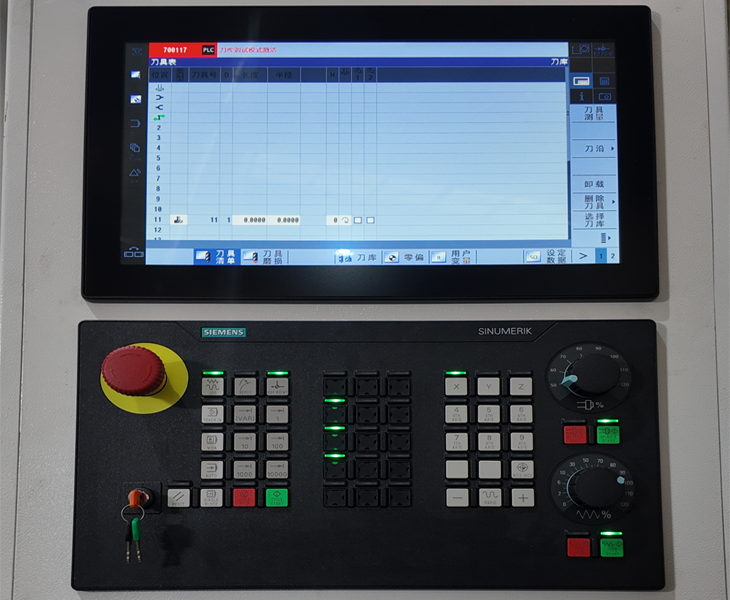

Precision That Stays True - Shift After Shift, Year After Year
Losing tolerance over time means scrapped parts and lost profit for you. That’s why our milling machines are built to hold ±0.01 mm positioning accuracy for the long haul. Every axis uses precision ball screws driven by independent servo motors. Guideways are hardened, ground, and scraped to resist wear. You get in-process quality checkpoints and final acceptance testing before delivery. You get repeatable results on every job – no creeping inaccuracies.
Worried About Spare Parts, Training, or Slow Support?
Downtime is your biggest cost. That’s why we built a service network that actually responds for you. One-year free warranty and lifetime maintenance are standard. We keep ample spare parts in stock. Our hotline responds within 10 minutes. Additionally, we provide training for your team to ensure that even small issues are addressed promptly before they impact production line operations.

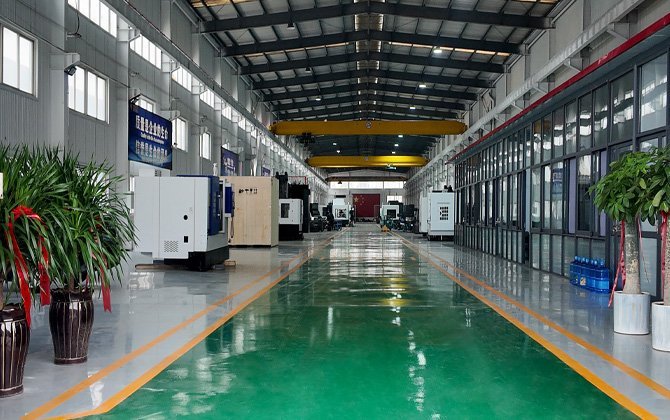

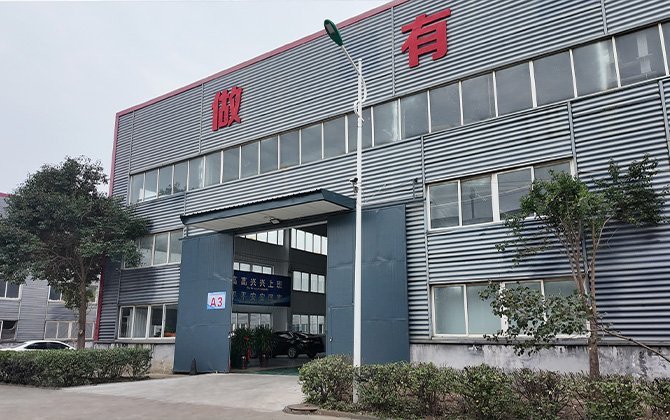

Why Do 500+ Manufacturers Choose Our Milling Machines?
We have served over 500 manufacturing customers across China through a decade of local commitment. Your machine benefits from our complete local supply chain verification system – every component meets our standards before assembly. Beyond hardware, you get an industry knowledge database covering more than 20 specialized sectors – from mold making to heavy equipment. This means you get a milling machine backed by real-world experience, verified sourcing, and sector-specific insights that generic suppliers cannot offer you.
Solutions by Industry
Heavy-duty milling of engine blocks, transmission housings, and chassis components. Your milling machines handle cast iron and steel with ±0.01 mm accuracy. Ideal for your batch production and tool room work.
Complex cavity milling, angle cutting, and surface finishing for plastic injection molds and stamping dies. You get 360° swivel head and hardened guideways that ensure long-term precision for your molds.
Technical Specifications

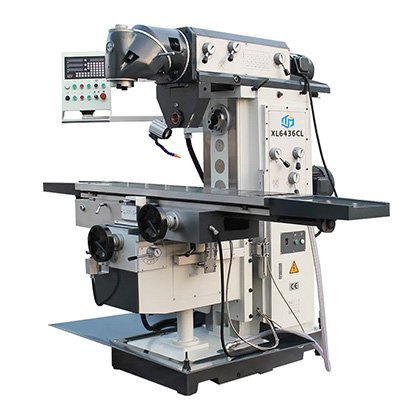

- XL6436 Series – Knee-Type Mill
- X6325U – Turret Mill

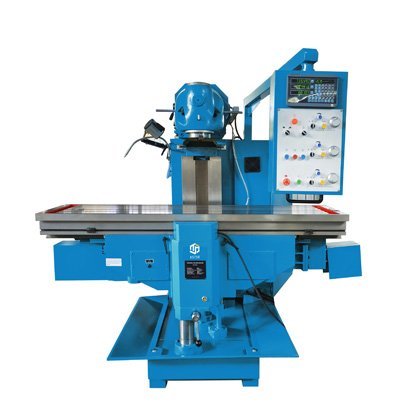

- X5750 Series – Ram-Type Mill
| specification | XL6436 | XL6436CL |
| Worktable | ||
| Table size(L×W) | 1325×360mm | 1600×360mm |
| T-slot(N×W×D) | 3-18/80mm | 3-18/80mm |
| Travel | ||
| Table travel (X/Y/Z) | 750×320×450mm | 1300/320/1450mm |
| Table feed(X/Y/Z) | 30-750/20-500/15~375rpm | |
| Swivel Table | ±45°Optional | ±45°0ptional |
| Ram travel | 600mm | 600mm |
| Spindle | ||
| Spindle taper | 724 ISO50(HV) | 7.24 ISO50(HV) |
| Distance between spindle nose and table surface | 196-646mm | 190-590mm |
| Spindle sped(12 steps) | 60-1750rpm(V) 60-1800pm(H) 12 steps 60-1750rpm(V) 12 steps 60-1800rpm(H) | |
| Main motor power | 4kw(V),5.5kw(H) | 4kw(V),5.5kw(H) |
| Horizontal | ||
| Distance between horizontal nose and table surface | 20-470mm | 175625mm |
| Distance between horizontal nose and am surface | 200mm | 200mm |
| Machine weight | ||
| Max loading capacity | 350kg | 350kg |
| N.w | 2650kg | 2800kg |
| 3phase AC feeding servo motor torque | 10N.m | 10N.m |
| Overall size | ||
| L×W×H | 1800×2100×2000mm | 2520×2100×2000mm |
| Specification | X6325U |
| Worktable | |
| Table size(L×W） | 1270×254mm（Optional：1370×254mm） |
| T-slot size(N×W×D) | 3/16/65mm |
| Travel | |
| Table travel(X/Y/Z) | 800×420×450mm |
| Spindle | |
| Spindle taper vertical/horizontal | R8/NT30(V),NT40(H) |
| Distance between horizontal nose and table surface | 0-400mm |
| Distance between spindle axis and ram surface | 230mm |
| Vertical spindle variable speed | 80-4200rpm(variable) |
| Vertical spindle step speed | 66-4540pm(16 steps) |
| Horizontal spindle step speed | 40-1300rpm(12 steps) |
| Ram travel | 400mm |
| Main motor power(V/H) | 225kw,optional 3.75kw(vertical) |
| 3kw(horizontal) | |
| Overall size (L×W×H) | 1650×1680×2450mm |
| N.w | 1400kg |
| Specification | X5750 | X5750A |
| Worktable | ||
| Table size | 500×1600mm | 500x2000mm |
| T-slot size(N×W×D) | 5-18x80mm | 5-18x80mm |
| Table travel (X/Y/Z) | 1200×700x500mm | 1400x700x500mm |
| Swivel Table | 360° | 360° |
| Feed | ||
| Table feed(X/Y/Z) | 10-1000/10-1000/5-500mm/min | |
| Table rapid speed | 2200/2200/1100mm/min | |
| Feeding motor toque(X/Y/Z) | AC servo motor:1818/27Nm | |
| Spindle | ||
| Spindle taper | ISO50 | ISO50 |
| Distance between spindle nose and table surface | 50-550mm | 50-550mm |
| Distance between spindle and am surface | 45-745mm | 45-745mm |
| Spindle speed range | (27steps)30-2050rpm | (27steps)30-2050rpm |
| Main motor power | 7.5kw | 7.5kw |
| Machine weight | ||
| Max loading capacity | 1500kg | 1500kg |
| N.w | 4500kg | 5000kg |
| Overall size | 2625×2460×2080mm | 3125×2860×2080mm |
Customer Testimonials
Cutting complex angles on injection mold cores used to take three setups. Your milling machine with the swivel head does it in one. Cycle time cut by 35%, and surface finish improved noticeably. The 7.5 kW spindle has plenty of torque for hardened steel.
James CarterToolroom Supervisor, USAWe needed a basic milling machine for small batch work. Your milling machine does exactly what we expected. No fancy features, but it cuts straight, holds size, and hasn’t broken down in 6 months. Good value for the price.
Tomasz KowalskiWorkshop Owner, Poland

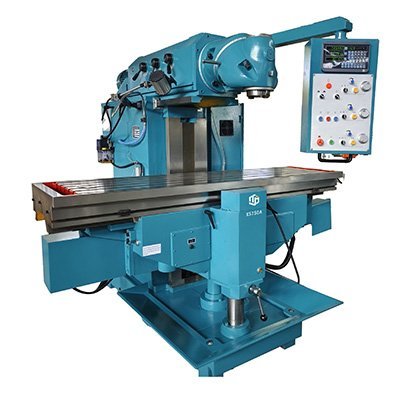

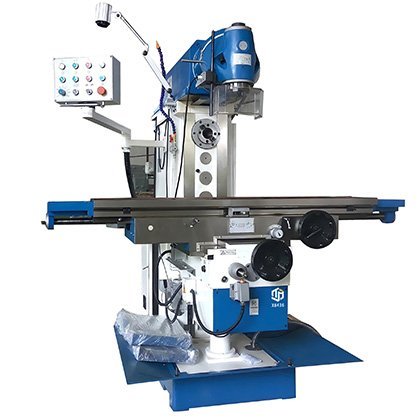

A ram-type mill (like X5750A) has a spindle head mounted on a horizontal ram that can slide in and out, so you can reach over large workpieces. A knee-type mill (like XL6436) has a vertically adjustable knee supporting the table, giving you better precise depth control on smaller parts. Both are conventional universal mills you can rely on.
A turret milling head (as on X6325U) can rotate 45° front-back and 90° left-right. This allows you to machine angled surfaces, do side milling, or reach tight corners without moving the workpiece. It adds flexibility for your mold making and repair work.
Yes, several of our models (such as the XL6436 series and X6325U) are universal mills that support both vertical and horizontal cutting. You can switch between modes by changing tooling and adjusting the overarm. This makes them suitable for your slotting, gear cutting, and face milling. Please confirm with our sales team which accessories are included.
