Universal Milling Machine Manufacturer
TOP MADE is a manufacturer integrating R&D, production, and sales of universal milling machines for mold making, automotive parts production, and general repair shops. Backed by 10 years of localized expertise and a full-range machine tool matrix, TOP MADE offers a flexible production system and three-step quality control, delivering end-to-end solutions from prototyping to batch production. You benefit from a one-year free warranty and lifetime maintenance.
Universal Milling Machine Lineup
This model features a compact body, suitable for vertical and horizontal processing of small to medium parts.

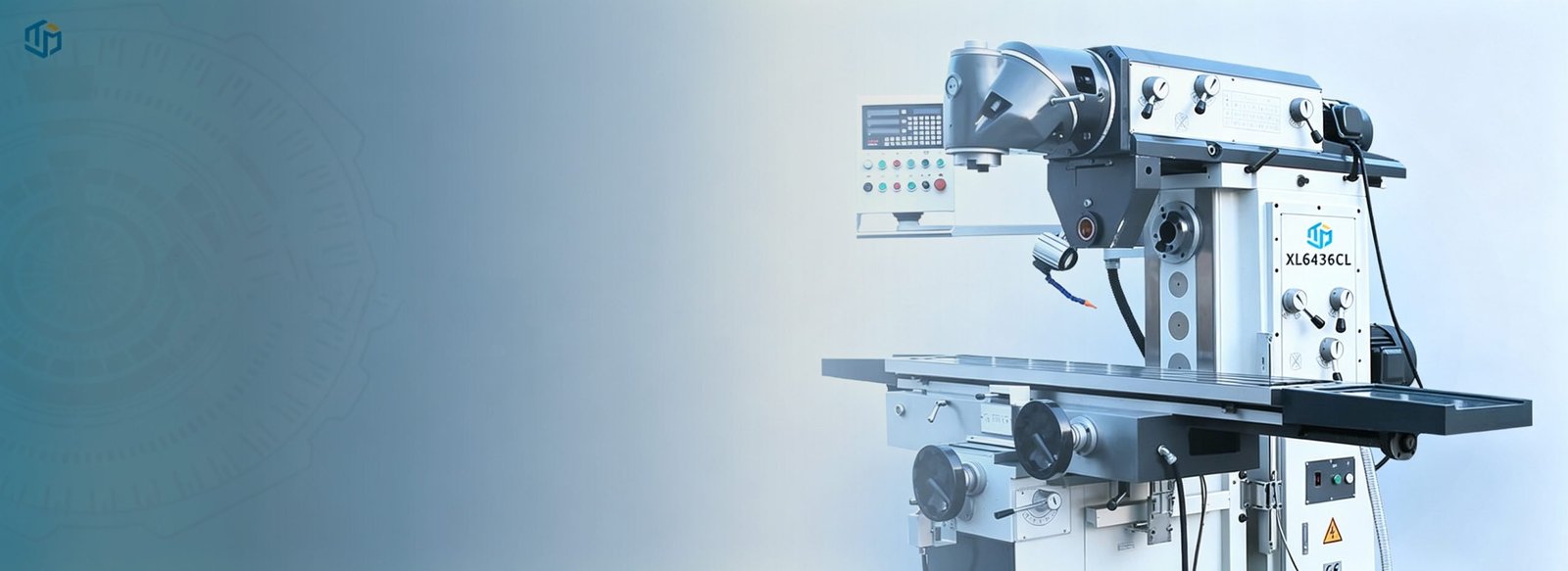

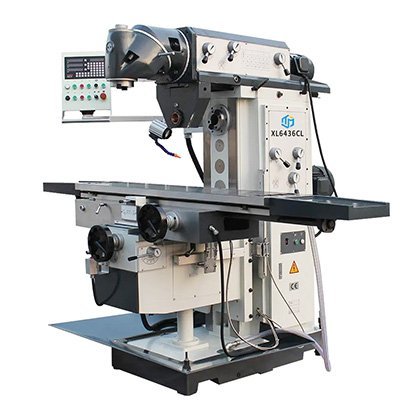

It adopts an extended worktable and a large travel design to meet batch processing needs for long workpieces.
This lightweight model comes with a Taiwan milling turret head, offering flexible operation and economical value.
Why Choose a Universal Milling Machine for Your Shop?
This universal milling machine is durable, efficient, and easy to maintain – rigid body and hardened guideways ensure long-term stability, fast vertical/horizontal switch cuts your waiting time, and ample spares keep your downtime worries away.
High-strength cast iron body resists deformation. Hardened guideways resist wear. Accuracy stays true over years of use.
Rigid structure stays stable during heavy cuts. Better surface finish. Longer tool life.
Quick change between vertical and horizontal heads. Machine multiple faces in one setup. No equipment changeover.
One-year free warranty, lifetime maintenance. Ample spare parts. 10-minute response. Less downtime worry.

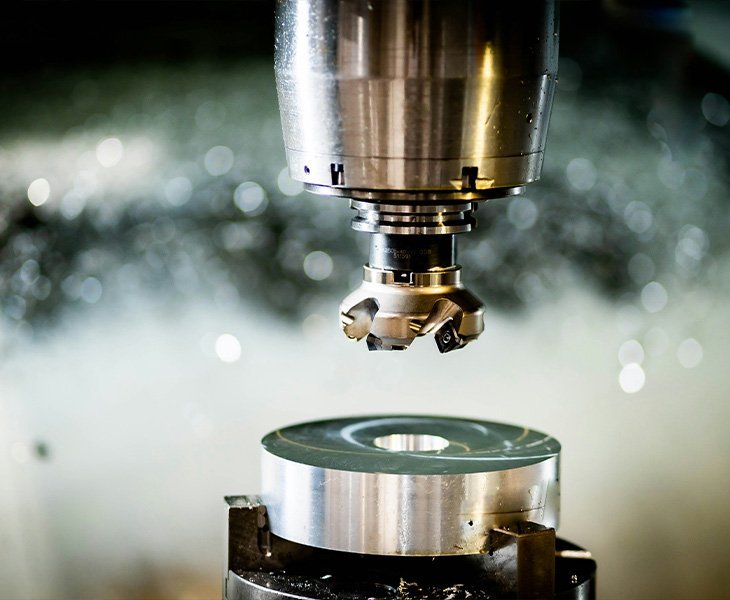

Stable Cutting from High-Rigidity Body
The HT-200 high-strength cast-iron bed features heavy ribbing for extreme rigidity, suppressing cutting vibration by design. Precision-ground hardened guideways with surface hardening treatment ensure smooth and long-lasting table movement. Together, they allow this universal milling machine to remain stable during your heavy cutting operations, effectively improving your surface finish while significantly extending your tool life. This is the foundation for your high-precision machining.
Ample Spare Parts & Fast Response
We promise you the fastest 10-minute response to your after-sales requests. Ample spare parts inventory covers all key components – no long waits for factory orders. One year free warranty, lifetime maintenance, and VIP customers receive 24-hour on-site service. We also provide professional machine operation and maintenance training, plus complete acceptance and testing. Our goal is to minimize your downtime and keep your production on schedule.

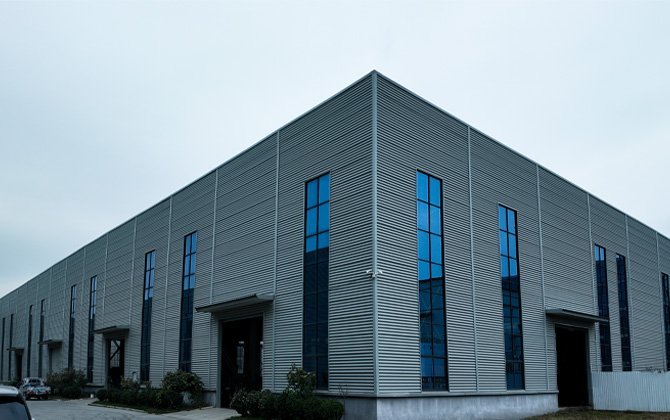

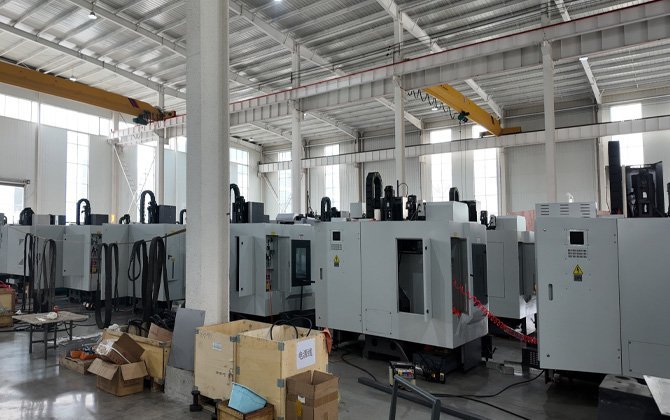

Company Capabilities
TOP MADE offers you 6 product lines covering 90% of metal processing applications, with the universal milling machine as one of our core products. We control quality through a localized supply chain verification system while transferring domestic service experience to your overseas markets. The company has established a 20 million yuan foreign trade fund and assembled a team of European and American market experts offering multi-language support.
Solutions by Industry
Mold manufacturing demands high rigidity and precision from milling machines. You can maintain stability with our universal milling machine during roughing and finishing of mold steel thanks to the HT-200 cast-iron body and hardened guideways. The fast vertical/horizontal switch allows you to machine multiple faces of your complex molds without changing equipment, shortening mold delivery lead times.
Automotive parts such as rails and brackets require efficient batch processing for long workpieces. The extended worktable and large travel design of the XL6436CL model allow you to achieve full-length machining in a single setup. 3-axis servo variable feed combined with 5.5kW high-torque drive delivers stable heavy stock removal. Ample spare parts and fast response keep your production line running.
Technical Specifications

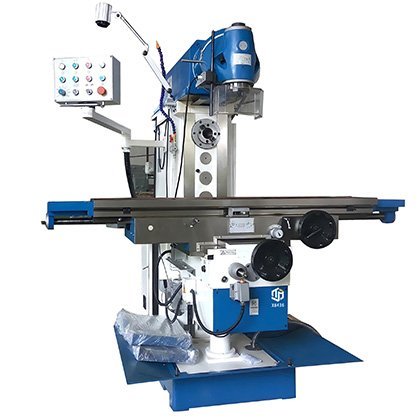

- XL6436 Series – Knee-Type Mill

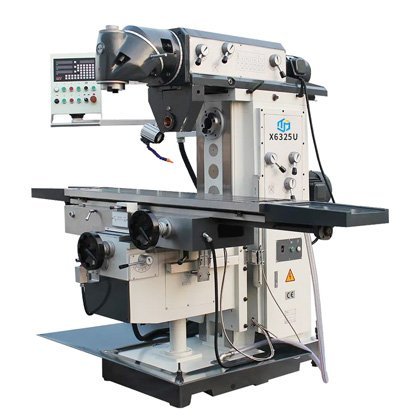

- X6325U – Turret Mill
| specification | XL6436 | XL6436CL |
| Worktable | ||
| Table size(L×W) | 1325×360mm | 1600×360mm |
| T-slot(N×W×D) | 3-18/80mm | 3-18/80mm |
| Travel | ||
| Table travel (X/Y/Z) | 750×320×450mm | 1300/320/450mm |
| Table feed(X/Y/Z) | 30-750/20-500/15~375rpm | 30-750/20-500/15~375rpm |
| Swivel Table | ±45°Optional | ±45°Optional |
| Ram travel | 600mm | 600mm |
| Spindle | ||
| Spindle taper | 7:24 ISO50(HV) | 7:24 ISO50(HV) |
| Distance between the spindle nose and the table surface | 196-646mm | 190-590mm |
| Spindle speed(12 steps) | 60-1750rpm(V) 60-1800rpm(H) 12 steps 60-1750rpm(V) 12 steps 60-1800rpm(H) | 60-1750rpm(V) 60-1800rpm(H) 12 steps 60-1750rpm(V) 12 steps 60-1800rpm(H) |
| Main motor power | 4kw(V),5.5kw(H) | 4kw(V),5.5kw(H) |
| Horizontal | ||
| Distance between the horizontal nose and the table surface | 20-470mm | 175-625mm |
| Distance between the horizontal nose and am surface | 200mm | 200mm |
| Machine weight | ||
| Max loading capacity | 350kg | 350kg |
| N.w | 2650kg | 2800kg |
| 3-phase AC feeding servo motor torque | 10N.m | 10N.m |
| Overall size | ||
| L×W×H | 1800×2100×2000mm | 2520×2100×2000mm |
| Specification | X6325U |
| Worktable | |
| Table size(L×W） | 1270×254mm(Optional:1370×254mm) |
| T-slot size(N×W×D) | 3/16/65mm |
| Travel | |
| Table travel(X/Y/Z) | 800×420×450mm |
| Spindle | |
| Spindle taper vertical/horizontal | R8/NT30(V),NT40(H) |
| Distance between the horizontal nose and the table surface | 0-400mm |
| Distance between the spindle axis and the ram surface | 230mm |
| Vertical spindle variable speed | 80-4200rpm(variable) |
| Vertical spindle step speed | 66-4540rpm(16 steps) |
| Horizontal spindle step speed | 40-1300rpm(12 steps) |
| Ram travel | 400mm |
| Main motor power(V/H) | 2.25kw,optional 3.75kw(vertical) |
| 3kw(horizontal) | |
| Overall size (L×W×H) | 1650×1680×2450mm |
| N.w | 1400kg |
Customer Testimonials
We purchased this universal milling machine mainly for stainless steel parts. The 12-step speed range allows us to find the right cutting parameters, and the hardened guideways show minimal wear after two years. Value for money exceeded expectations.
Andreas WeberProduction Manager, GermanyOur repair shop needs to handle various odd jobs. The fast vertical/horizontal switch on this machine is very practical – no more transferring workpieces between two machines. After-sales response is also fast; we received a reply within 10 minutes last time.
Luca RossiWorkshop Supervisor, ItalyThe extended worktable is a great help for machining long rails – full-length machining in one setup. The 3-axis servo feed provides precise control, and our operators find it much easier to learn than older equipment. An ample supply of spare parts also gives us peace of mind.
Juan CarlosTooling Engineer, Spain
A universal milling machine is a metal cutting machine tool that combines both vertical and horizontal milling functions. Its key feature is a universal head that allows fast switching between vertical and horizontal milling without changing equipment. Main applications include mold cavity machining, batch production of automotive parts, repair shop odd jobs, and complex workpieces requiring multi-face machining in a single setup.
The key difference is the vertical and horizontal combined function. A standard milling machine can only perform either vertical or horizontal milling, while the universal head allows fast switching between the two without changing equipment. This means complex workpieces can be machined on multiple faces in a single setup, improving efficiency and reducing re-positioning errors.
Table size and travel depend on your typical workpiece dimensions and batch processing needs. For small parts such as mold inserts or repair parts, a standard worktable is sufficient. For frequent processing of long workpieces such as automotive rails or long brackets, an extended worktable and a large travel model are recommended to avoid accuracy loss and efficiency loss from multiple setups.
