A Press Machine You Can Actually Rely On
You need a press machine you can trust. We’ve spent 10 years working with over 500 Chinese manufacturers, which taught us exactly what breaks, what matters, and what saves you time. So we built a system around that: tight quality checks, and spare parts ready when you need them. You don’t get a sales pitch. You get a hydraulic press machine that works.
Press Machine Lineup

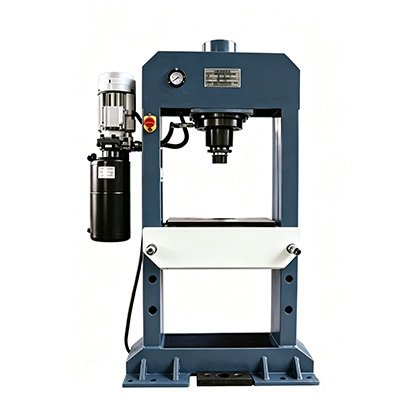

With 300kN of force and a 300x400mm table, it’s a solid choice for daily shop work.

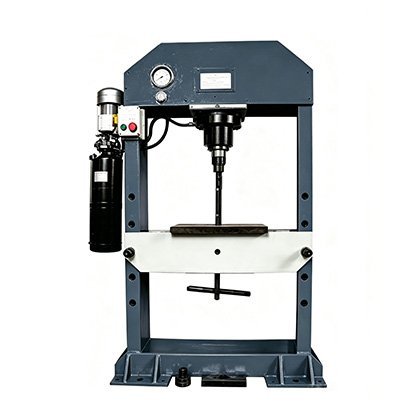

It delivers 630kN at 30MPa on a 400x500mm table, so heavier jobs feel more stable.

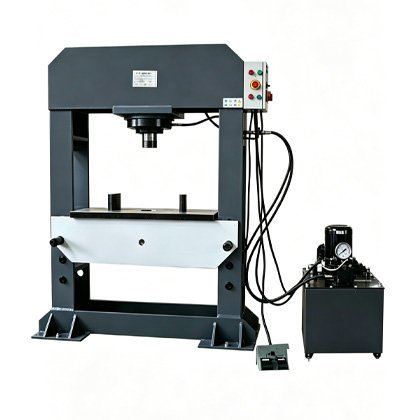

With 1500kN of force, thick plates and tough materials are not a problem.

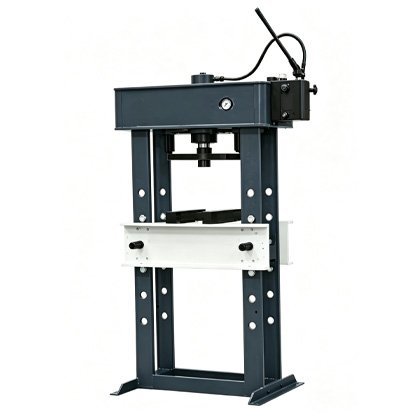

It runs on manual control and gives you 50MPa of pressure, keeping things simple and dependable for lighter tasks.

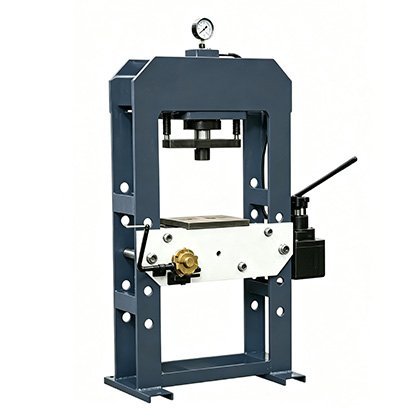

You get 300kN and 50MPa with manual control, giving you more pressure and a direct feel for the work.
Why Choose Our Press Machine
Delivers up to 2500kN of force, handling thick plates and tough materials without struggling.
Built with heavy-duty steel construction, stays stable under heavy loads without shaking.
Designed with space-saving dimensions, fits into crowded workshops without taking up too much space.
Available in manual press models, giving you direct feel and control over each job.

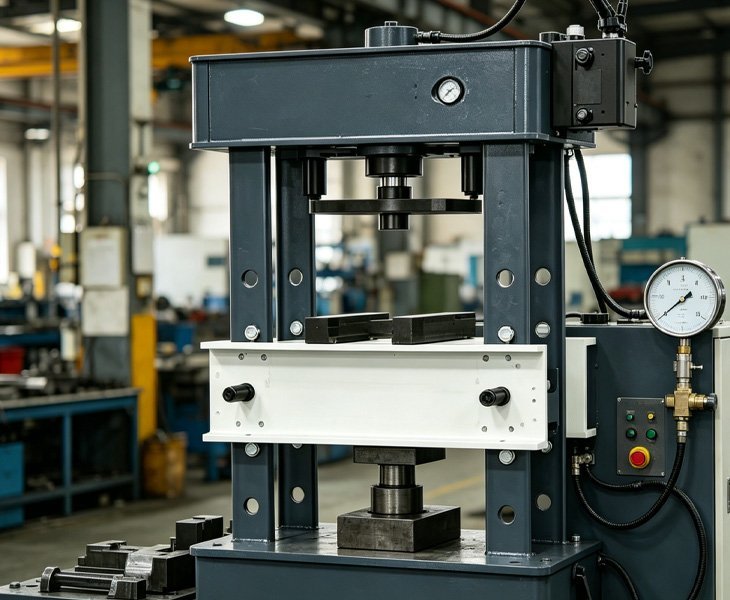

Built to Last, Not to Break After a Few Years.
You want a press machine that stays rigid under pressure. Steel frame construction gives you that – no wobble, no flex. We run every press machine through a 72-hour continuous operation test before it leaves the factory. If something’s going to fail, it fails here, not on your shop floor. One-year warranty and lifetime maintenance give you extra peace of mind.
Professional Technical Guidance. You Don't Start from Zero.
Over ten years, we’ve built a process knowledge database covering more than 20 sub-sectors. How to stamp automotive parts, how to straighten shafts, how to press hardware parts – we have proven solutions. Whatever press machine you need, tell us what you make, and we’ll tell you the parameters and what to watch for. You don’t have to start from zero.

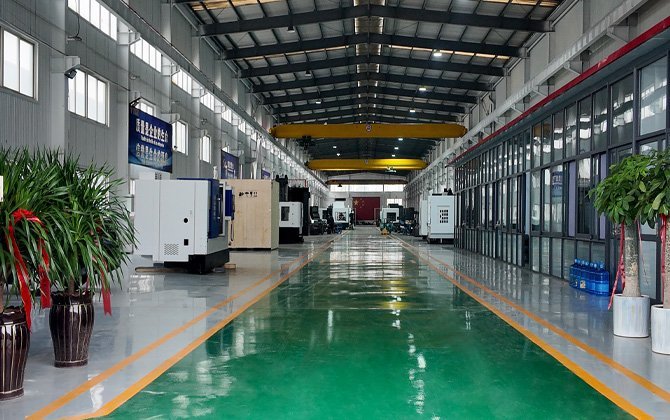

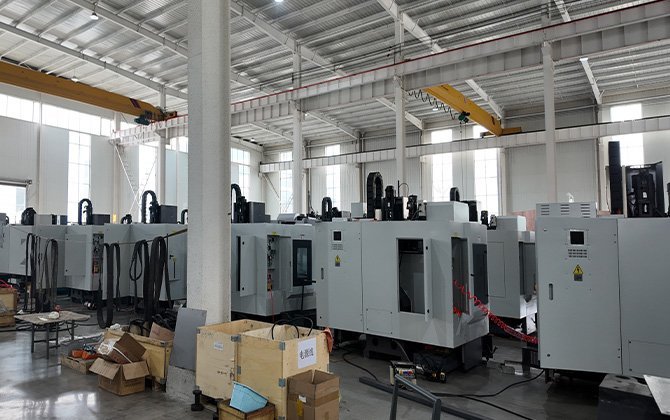

Company Capabilities
When you buy a press machine from TOP MADE, you’re getting more than just equipment. We’ve spent 10 years working alongside over 500 Chinese manufacturers, which taught us what actually breaks, what matters most, and how to save you time. We built our supply chain around those lessons and created a machine tool lineup that covers 90% of metal processing scenarios. One-year warranty, and we don’t disappear after that – lifetime maintenance is part of the deal.
Solutions by Industry
Metal fabrication shops need a hydraulic press that can handle different thicknesses and materials without constant adjustments. Our press machines deliver consistent force throughout the entire stroke, so you get consistent results every time. The rigid steel frame keeps everything stable, and the large worktable gives you room for bigger sheets. Whether you’re doing a quick one-off or a small batch, it gets the job done without fuss.
General manufacturing shops deal with all kinds of jobs – pressing bearings, straightening shafts, assembling parts. No two days are the same. Our press machines cover most of what walks through your door. Three-step quality control means each press run job is reliably completed after the job, so you spend less time fixing and more time working.
Technical Specifications
- Hydraulic Press
- Manual Press
| Model | Capacity | Pressure | Travel | Table size | Dimension | N.W |
| HP-10 | 100kN | 25MPa | 200mm+200mm | 260×300mm | 1000×450×1200mm | 220kg |
| HP-20 | 200kN | 25MPa | 200mm+250mm | 260×300mm | 1160×550×1500mm | 320kg |
| HP-30 | 300kN | 25MPa | 200mm+270mm | 300×400mm | 1160×550×1600mm | 420kg |
| HP-50 | 500kN | 25MPa | 220mm+405mm | 480×360mm | 1500×650×1950mm | 980kg |
| HP-63 | 630kN | 30MPa | 220mm+405mm | 400×500mm | 1500×650×1950mm | 1020kg |
| HP-100 | 1000kN | 30MPa | 220mm+405mm | 440×980mm | 1730×730×2200mm+730×630×960mm | 1220kg |
| HP-150 | 1500kN | 30MPa | 220mm+405mm | 440×980mm | 1730×730×2200mm+730×630×960mm | 1350kg |
| HP-200 | 2000kN | 30MPa | 300mm+405mm | 500×980mm | 1890×800×2200mm+830×730×1260mm | 2200kg |
| HP-250 | 2500kN | 30MPa | 300mm+405mm | 500×980mm | 1890×800×2250mm+830×730×1260mm | 2400kg |
| Model | Capacity | Pressure | Travel | Table size | Dimension |
| HP-10S | 100kN | 50MPa | 180mm+450mm | 200×300mm | 700×450×1300mm |
| HP-20S | 200kN | 50MPa | 200mm+450mm | 200×300mm | 700×450×1300mm |
| HP-30S | 300kN | 50MPa | 200mm+450mm | 300×400mm | 750×500×1500mm |
| HP-40S | 400kN | 60MPa | 250mm+450mm | 360×500mm | 1100×650×1500mm |
| HP-50S | 500kN | 60MPa | 250mm+450mm | 360×680mm | 1100×650×1750mm |
Customer Testimonials
We needed a manual press for small batches and repair jobs. The HP-30S gives us 50MPa, which is higher than most hydraulic units this size. You can feel the pressure directly, so it’s easy to avoid crushing parts. Simple machine, does what it’s supposed to.
Markus WeberMaintenance Lead, GermanyOur shop runs two shifts, so the press gets used ten to twelve hours a day. We needed something that wouldn’t quit. This hydraulic press has held up. The steel frame is solid, and the hydraulic system is straightforward. No major repairs since we got it. That’s really all we care about.
Luca RicciOperations Manager, ItalyThe old hydraulic unit had too many electronic issues, so a manual press was the way to go. This one has been solid. Pull the lever, and you feel exactly how much pressure you’re applying. 50MPa is plenty for repair jobs. Simple and dependable.
Anna KowalskiShop Owner, Poland
Have you ever needed to push something really hard and straight? That’s what a press machine does. You put your part on the table, move the lever, and the ram comes down to apply pressure. Around a shop, people use them to push bearings into place, straighten bent shafts, bend metal sheets, or put parts together. It’s a basic tool, like a drill press or a bandsaw – except instead of spinning or cutting, it just pushes.
Hydraulic ones have a pump and a cylinder. You don’t need to be strong – the machine does the pushing for you. Manual ones are simpler: you pull a lever, and your arm does the work (with some help from a linkage). That means you can feel exactly how hard you’re pressing. Manual presses also run at higher pressure – up to 60MPa – so they’re good for small batches or repair jobs where you need to feel the part. So here’s the trade-off: hydraulic saves your arms, manual gives you a better feel.
A well-built hydraulic press with regular maintenance can last 15-20 years or more. Steel frame models hold up better than cast iron. The cylinder and pump are usually the first parts to wear. With spare parts available and basic maintenance – checking oil, cleaning filters – you can keep a good press running for decades.
