Ten Years of Experience, Turned Into Standards
TOP MADE has built sheet metal machines for ten years, serving 500 Chinese factories. We know which parts break, what performance matters, and how to save you time. Every sheet metal machine runs 72 continuous hours of testing before shipping. Proofing within 72 hours. Spare parts are ready. One-year warranty, lifetime maintenance.
Sheet Metal Machine Lineup
It runs 70m/min high-speed cutting, and the annealed body keeps it straight for years.
It uses auto-hydraulic crowning to keep bend angles consistent on long workpieces.
It delivers 1500kN of force, and the steel frame stays rock-solid under load.
Why You Need Sheet Metal Machines
All machines are built with rigid steel construction, staying stable under heavy loads without shaking.
Space-saving dimensions fit into crowded workshops without taking up too much room.
Every machine runs a 72-hour continuous test before shipping. If something fails, it fails here, not on your floor.
Manual control models give you direct control over every job. No electronics to fuss with, just pure mechanical control.

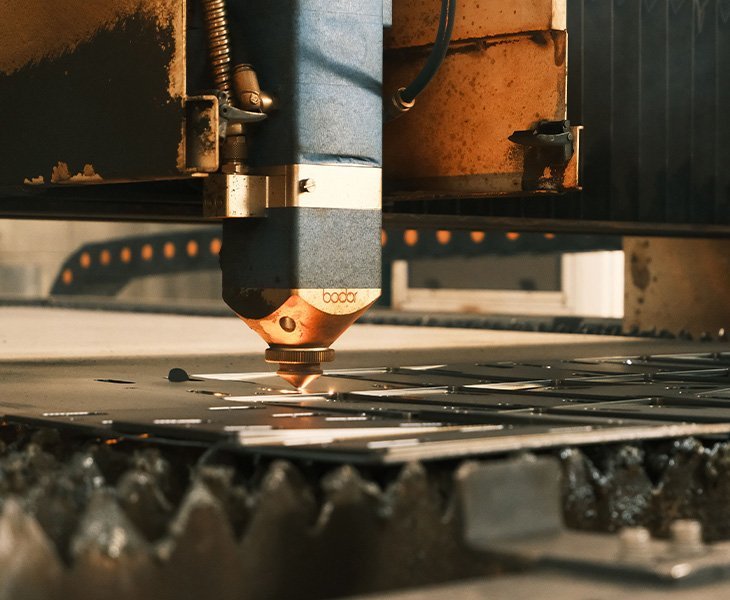

Long-Term Dimensional Stability
Welded steel bodies lock in internal stress. Ignore it, and the stress slowly releases – the frame warps. Our bodies go through annealing to remove stress, then gantry milling to machine all surfaces in one setup. Take your calipers to it years later. The numbers won’t move. This is a process, not magic.
Industry-Specific Manufacturing Expertise
How to cut automotive parts without heat distortion? How much springback on agricultural bends? What die clearance for hardware stamping? Different industries have different problems. We have parameter packages for 20+ sub-sectors. Tell us your industry and your part. We’ll send you the sheet. You don’t start from zero.

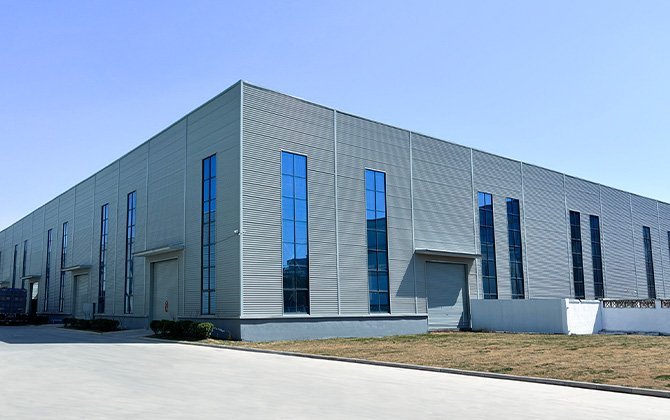

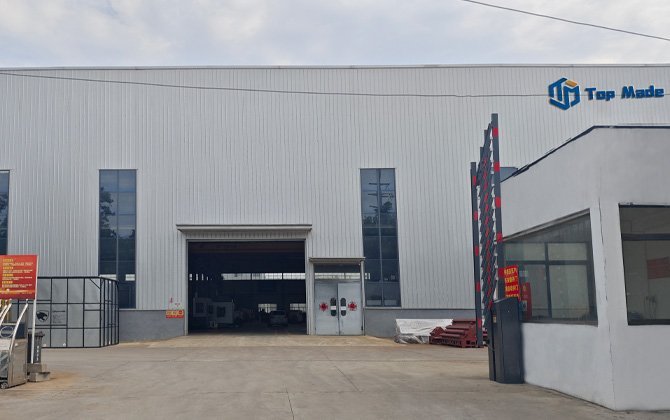

Company Capabilities
Compound processing equipment accounts for 35% of TOP MADE’s product lines – nearly double the industry average. One machine handles multiple processes, reducing the number of machines on your shop floor and eliminating transfer time between operations.
Monthly production capacity flexibly adjusts from 100 to 500 units. When your orders surge, we ramp up – your delivery dates stay safe. That’s what you get when you work with a supplier who’s been in your shoes.
Solutions by Industry
You need a laser cutting machine that runs at 70m/min with an annealed body that stays straight for years, and a hydraulic press brake with auto crowning that keeps bend angles consistent on long workpieces. The result: the same bend from the first part to the last. Less rework. More output.
You need press machines that cover all of these jobs. Our press machines deliver up to 2500kN for heavy jobs, and manual press machines provide up to 60MPa for delicate work. You spend less time fixing and more time working. That’s how you keep your production moving.
Technical Specifications
- Hydraulic Press
- H1310 Specifications
- WC67Y/K Series Specifications

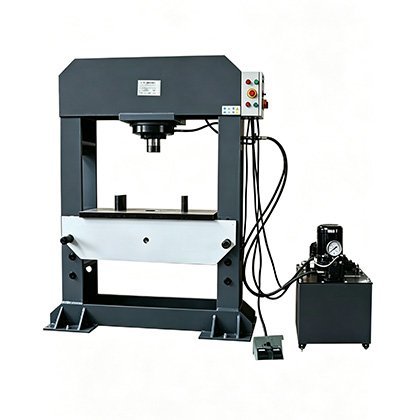

| Model | Capacity | Pressure | Travel | Table size | Dimension | N.W |
| HP-10 | 100kN | 25MPa | 200mm+200mm | 260×300mm | 1000×450×1200mm | 220kg |
| HP-20 | 200kN | 25MPa | 200mm+250mm | 260×300mm | 1160×550×1500mm | 320kg |
| HP-30 | 300kN | 25MPa | 200mm+270mm | 300×400mm | 1160×550×1600mm | 420kg |
| HP-50 | 500kN | 25MPa | 220mm+405mm | 480×360mm | 1500×650×1950mm | 980kg |
| HP-63 | 630kN | 30MPa | 220mm+405mm | 400×500mm | 1500×650×1950mm | 1020kg |
| HP-100 | 1000kN | 30MPa | 220mm+405mm | 440×980mm | 1730×730×2200mm+730×630×960mm | 1220kg |
| HP-150 | 1500kN | 30MPa | 220mm+405mm | 440×980mm | 1730×730×2200mm+730×630×960mm | 1350kg |
| HP-200 | 2000kN | 30MPa | 300mm+405mm | 500×980mm | 1890×800×2200mm+830×730×1260mm | 2200kg |
| HP-250 | 2500kN | 30MPa | 300mm+405mm | 500×980mm | 1890×800×2250mm+830×730×1260mm | 2400kg |

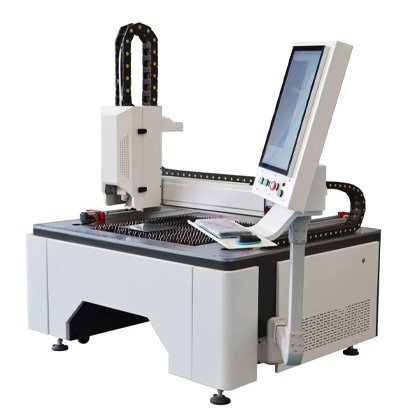

| Model | H1310 |
| Working Area | 1300mm×1000mm |
| Laser Type | Fiber laser generator |
| Laser Power | 1500W |
| Transmission System | Gantry double-drive structure |
| Lubrication System | Fully automatic |
| Maximum Linkage Speed | 70m/min |
| Maximum Acceleration Speed | 1.0G |
| Machine Body | Tube welded |
| Positioning Accuracy | ±0.05mm/1000mm |
| Repositioning Accuracy | ±0.03mm/1000mm |
| Graphic Format Supported | CAD, DXF, etc |
| Working Environment | Temp:0-40℃, humidity:≤80% |
| Total Power | 16.78KW |
| Machine Size | 2700×1736×1900mm |
| Gross Weight | 600kg |
| Machine Body Production Process | Gantry milling |
| De-stressing | |
| De-firing |

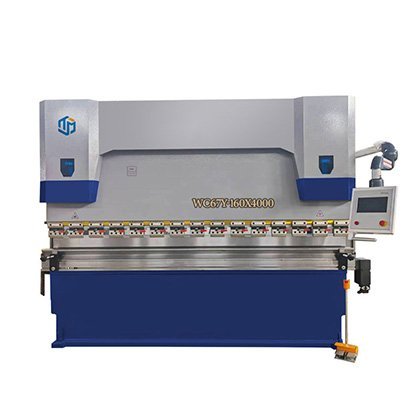

| Model and Specifications | Nominal pressure | Length of work table | Distance between uprights | Throat depth | Stroke | Open height | Motor power |
| WC67Y/K-30/1600 | 300 kN | 1600 mm | 1250 mm | 200 mm | 90 mm | 300 mm | 4 kw |
| WC67Y/K-40/2000 | 400 kN | 2000 mm | 1650 mm | 250 mm | 100 mm | 330 mm | 5.5 kw |
| WC67Y/K-40/2500 | 400 kN | 2500 mm | 2100 mm | 250 mm | 100 mm | 330 mm | 5.5 kw |
| WC67Y/K-63/2500 | 630 kN | 2500 mm | 2100 mm | 250 mm | 120 mm | 340 mm | 5.5 kw |
| WC67Y/K-63/3200 | 630 kN | 3200 mm | 2450 mm | 250 mm | 120 mm | 340 mm | 5.5 kw |
| WC67Y/K-80/2500 | 800 kN | 2500 mm | 2100 mm | 250 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-80/3200 | 800 kN | 3200 mm | 2450 mm | 250 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-100/2500 | 1000 kN | 2500 mm | 2100 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-100/3200 | 1000 kN | 3200 mm | 2450 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-100/4000 | 1000 kN | 4000 mm | 3090 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-125/2500 | 1250 kN | 2500 mm | 2100 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-125/3200 | 1250 kN | 3200 mm | 2450 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-125/4000 | 1250 kN | 4000 mm | 3090 mm | 320 mm | 120 mm | 380 mm | 7.5 kw |
| WC67Y/K-160/3200 | 1600 kN | 3200 mm | 2450 mm | 320 mm | 180 mm | 440 mm | 11 kw |
| WC67Y/K-160/4000 | 1600 kN | 4000 mm | 3090 mm | 320 mm | 180 mm | 440 mm | 11 kw |
Customer Testimonials
We compared several sheet metal machine suppliers and chose this laser cutting machine. It leaves a clean edge on stainless steel decorative parts, barely any grinding needed. My old machine required a pass on the grinder after every cut. Now we skip that step.
Jean-Luc MoreauWorkshop Instructor, BelgiumOur shop runs two shifts. The hydraulic press brake gets used ten to twelve hours a day. This all-steel, welded frame is solid, and the hydraulic system is straightforward. No major repairs since we got it. That’s really all we care about.
Luca RicciOperations Manager, Italy
Sheet metal machines are equipment used to process metal sheets. Main types include: cutting (laser cutting machines for blanking), bending (hydraulic press brakes for forming), and pressing (press machines for punching and assembly). You can choose one or more types based on your process needs.
It depends on your work. Hydraulic machines save effort — good for high-volume repetitive jobs. Manual machines give higher pressure (up to 60MPa) with direct feel — good for small batches, repairs, and fine work. Neither is better. It’s about what fits your job.
Yes. We’ve served 500 Chinese factories across 20+ sub-sectors. Tell us what parts you make, what materials you use, and your monthly production volume. We’ll recommend the most suitable configuration based on real experience. We don’t push the most expensive — we push what fits.
